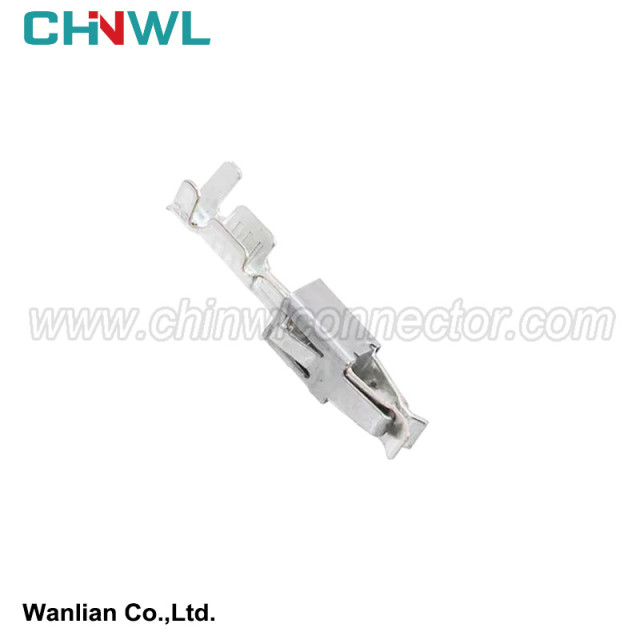

CHINWL #: 0-0927774-1 927774-1
Mfr. #: 0-0927774-1 927774-1
|
Wanlian part number: |
|
0-0927774-1 927774-1 |
|
Original number: |
|
0-0927774-1 927774-1 |
|
Gender: |
|
Female |
|
Specification: |
|
Copper Alloy, Brass, Phosphor Bronze, Nickel. |
|
Type: |
|
Terminal |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
4) Installation of wire bundle buckle fixed
The wire bundle buckle is the main fixing method of the wire beam assembly. It determines the layout of the wire beam on the entire vehicle. In order to facilitate the installation of the buckle, the requirements for the layout of the buckle are mainly:
The fixing hole of the buckle of the wire beam should be opened as possible in the plane area of the structural parts. When fixing on the curved surface, it is best to make small planes on the structural parts.
Under the premise that the reliability requirements of the line beam layout, the number of buckles should be as small as possible, reduce the burden of assembly of workers, and improve the assembly efficiency.
The thickness of the sheet metal on the buckle on the band and the plug -in must match the size of the hole, and the corresponding welding nut specifications must match each other.
In the installation direction of the fixed buckle, the buckle installation hole must be visible, or it can be touched. There must be sufficient space to facilitate the installation and disassembly of the buckle.
5) Selection of wire beam fasteners
During the design of the online beam fixed structure and the design of the relevant function box, try to use commonly used standard parts, and the types of standard parts should be as small as possible. The use of premium and maintenance through the preliminary design
6) Effect on the installation of surrounding parts
During the design process, the characteristics of different areas are considered, and the designed wire beams shall not affect the assembly of other vehicle components;
7) Electromagnetic compatibility and anti -electromagnetic interference
Regarding the electromagnetic compatibility and anti -electromagnetic interference, it is not just to do it from the selection of wires, such as using twisted wires and shielding wires, but also consider from the wiring of the wiring beam.
