CHINWL #:

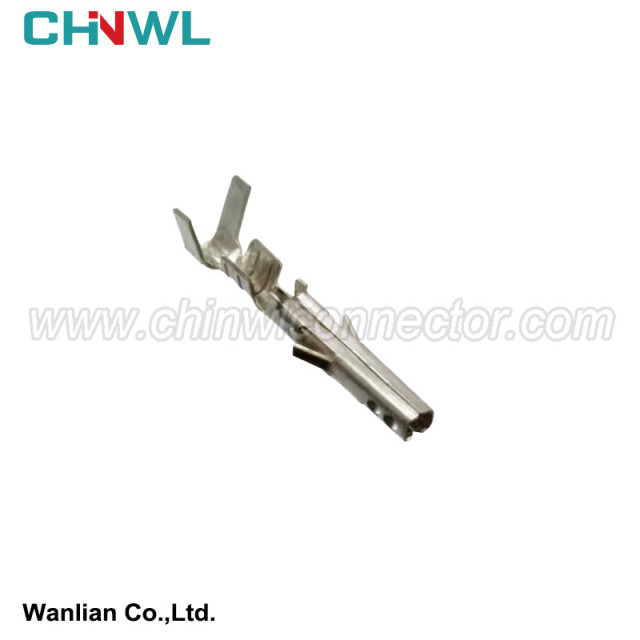

Mfr. #: 0-0963898-1 963898-1
|
Wanlian part number: |
|
|
|
Original number: |
|
0-0963898-1 963898-1 |
|
Gender: |
|
Female |
|
Specification: |
|
Copper Alloy, Brass, Phosphor Bronze, Nickel. |
|
Type: |
|
Terminal |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
The car wire beam terminal is one of the main connection components in the wiring beam. It is connected to a piece through the wire and terminal pressing, which plays the role of transmitting current and signals to meet the normal use of the vehicle. According to the requirements of the terminal use requirements, it is divided into two styles: open terminals and closed terminals.
The open terminal mainly refers to the traditional opening terminal. Most of the terminals are chain belt structures that can achieve uninterrupted continuous pressure on the device. A few large square meters (greater than 8 square meters) are single terminals. A single pressure connection is required when pressing. Essence The closed terminal is also called the tube terminal. The terminals are all single terminals. When pressing, the wires need to be put into the terminal and press the end of the terminal.
With the development of new energy vehicles, the high -voltage line began to increase gradually, and the main form of its terminal is a closed terminal. The use of open terminal online beams is relatively common, and the pressure connection method is relatively simple. No more analysis is made here. Today, I mainly analyze the closed terminal pressure connection and shielding ring pressure connection method in the high -voltage line. The shielding ring pressure connection is an unique type of pressure connection in the high -voltage line beam, which is mainly the role of shielding connection. Here is no more detailed introduction function. The pipe terminal pressure connection method is: 6 -sided pressure connection; 6 sides and 2 points pressure; MW type pressure connection; 4 points pressure connection. The main method of shielding the ring pressure connection is: 6 -sided pressure connection; 6 sides and 2 o'clock pressing; 6 o'clock pressing. Let's analyze from their pressing methods.
