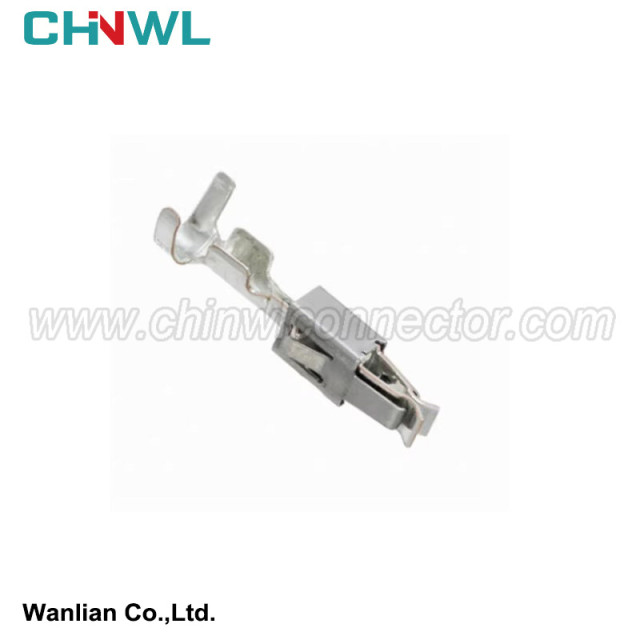

0-0964286-2 964286-2 964286-1 Cable Terminal Jacket Auto Socket Connector Automotive Plug

1 closed terminal pressure connection

1) terminal 6 face pressure connection method. The terminal 6 of the terminal is generally applied to the 8 -square -meter upper wire, and the wires and terminals are fully matched. The pressure connection equipment mainly uses hydraulic equipment to ensure soft pressure connection during the terminal pressure of the terminal, and avoid terminal cracks. Most of the sample stages use six -sided hydraulic dedicated equipment for modification, and then use a dedicated hydraulic equipment according to the pressure connection method in batches. See Figure 1, 6 face pressure connecting section diagram.

2) 6 sides and 2 points. 6 sides and 2 points of pressure connection (6 -square double -point pressure connection) are generally suitable for 8 square meters of upper wires. The wires and terminals are slightly smaller than the diameter of the terminal. The pressure connection equipment mainly uses hydraulic equipment. Generally, there are imported pressure connection equipment and domestic pressure connection equipment, which can meet the quality of the pressure connection, but the stability of the imported equipment is better. Since the high -voltage lines have not yet introduced the formal standards, the pressure connection method has not been fully unified, and the 6 -sided and 2 -point pressure connection method is too much. See Figure 3 at 6 points and 2 points of the terminal.

3) MW -type pressure connection method. MW -type pressure connection is generally suitable for 8 square meters of upper wires, and the wires and terminals are slightly smaller than the diameter of the terminal. However, in order to ensure the deformation of the terminal pressure and the wires of the wires, the MW -type pressure connection can be used first. New energy vehicles are increasing, and the stability of pressure connection is gradually increasing. MW -type pressure connection is a more superior way to connect based on 6 -sided 2 points. Promoting pressure connection method.

The patent of this pressure connection has been accepted. See Figure 5 in MW -type pressure, see Figure 6.

4) 4 point pressure connection methods. 4 -point pressure connection (square pressure connection or square dual pressure connection), generally suitable for 6 square wires with lower wires. The wires and terminals are combined with good cases. The number of wires commonly used at 4 points is 3 square meters, 4 square meters, and 6 square meters. Among them, 3 square meters and 4 square meters are too much. During the pressure connection process, you need to put the wires into the end of the terminal, and then hold the wire and the terminal for pressing. During the pressure connection process, the terminal should be prevented from being removed and affecting the operating efficiency.
