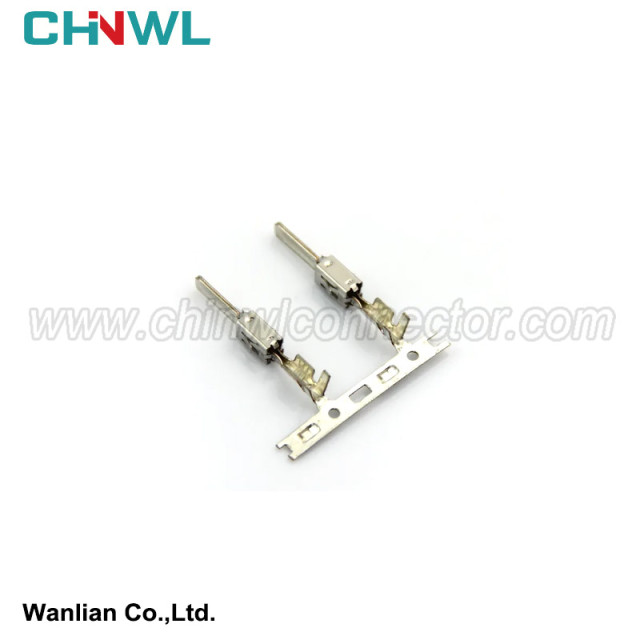

1-962841-1 1-0962841-1 Electrical Terminal Connector Brass Terminals Crimp Terminal

The car line bundles composed of wires, protectives, tapes, PVC tubes, terminals, ripples, waterproof thermal shrinkage pipes, and other auxiliary materials are the key parts of the connection wiring of the automotive electrical equipment system. In order to facilitate conventional inspections and equipment maintenance, each connection line is usually rationally arranged into bundle -shaped according to the division of specifications and colors, and bundled with insulating materials to ensure the accuracy and integrity of each connection parts.

By adopting different colors of wires, indicating the cross -area of the wire before the color code, and using different letters to perform circuit chart injection, etc., they are to clearly identify the multiple wires in the car beam in order to facilitate the maintenance of the maintenance process. Effective and quickly detect the problem of skilled by installing a drawing.

Select the color of the wire, monochrome is the optimal choice, two -color secondary. In addition, in the car wire beam installation map, black wire is the first choice for various car electrical iron wires. In other respects, black wires are useless, but only used for iron. The color code of the wire can be used to mark the wire color. Such as monochrome wires, the color is red, and it is marked as "R"; the two -color wire, the first color is the main color, the second color is the auxiliary color, the main color is red, the auxiliary color is white, and it is marked as "RW".

The cross -area of the wire used in the electrical equipment on the car is determined by the size of the load current. Electric equipment has been working for a long time. You can choose 60%of the actual load of the wires. Electric equipment is working in a short time. The actual load flow of the wire can be selected. The small electrical appliances such as indicator light circuits should be greater than 0.5mm2, so as to ensure the proper mechanical strength.

Note that if the cross -area unit of the wire is millimeter, it may not be marked. For example, 1.25R means a red wire with a cross -sectional area of 1.25mm2; 1.0g/y means a two -color wire with a cross -sectional area of 1.0mm2. The main color is green and the auxiliary color is yellow.

2. Analysis and judgment of the causes of line beam line failure

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
