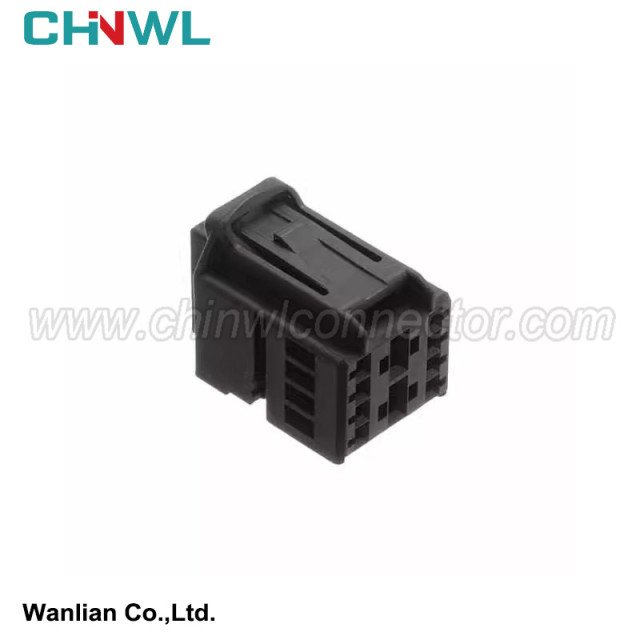

Wanlian #: WL1011-1.2-2.8-21
Mfr. #: 1563123-1 1563124-1 7P0972725 0-1563123-1
|
Wanlian part number: |
|
WL1011-1.2-2.8-21 |
|
Original number: |
|
1563123-1 1563124-1 7P0972725 0-1563123-1 |
|
Gender: |
|
Female |
|
Specification: |
|
Housing: PBT+G; PA66+GF; PA66; PBT; Nylon |
|
Type: |
|
Connector |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
1.2.2 Ultrasonic welding requirements for the operation of the wires
When welding of ultrasonic welding, relevant parameters are required, such as: wire cross -sectional area, wire alignment method, pressure, welding spacing, amplitude, width, pressure, energy, etc. During the welding process, the wire should be arranged vertically, and the large cross -sectional wire should be close to the welding tool head below to make the welding sufficient; Sex; the length of the overlap of the conductor is generally set to 13 ~ 15mm. The overlapping length is too short and the welding intensity is not easy to guarantee. The overlapping length is too long to form a raised end, which is inconvenient to operate the lower process. The surface of the welding is not allowed to oxidize, filaments, defects and insulation layers. As shown in Figure 7, the transition part of the welding and the undesirable transition part should be arc -shaped, and an unproocious conductor end can be seen in the B area.
1.2.3 4 important parameters and advantages of ultrasonic welding
1) In the vibration direction, amplitude is the maximum distance from the starting point of the starting point of vibration. The unit is micron. They interact when welding, which directly affects the welding quality of the line, and different lines have different settings.
2) The surface of the width (width) aggregation module is connected to the comparison surface of the iron anvil. The distance between them is millimeter during welding. The size determines the welding width.
3) The pressure of the pressure (Pressure) by the top block of the anvil on the copper line of the welding area. Its size is related to the air pressure. The direction of the action is vertical from the vibration direction.
4) During energy (Energy), the total energy released by the welding machine is scorched. That is, when the energy released during welding reaches the setting value, the welding is completed.
Ultrasonic welding has its unique advantage:
① High fusion strength, superior conductivity after welding, extremely low or almost zero resistance coefficient;
② Welding material has the characteristics of non -melting and non -fragile conductors;
③ The welding time is short, the efficiency is greatly improved, fast and energy -saving;
④ Stable welding process, online detection and control;
⑤ No gas, solder, welded welded;
⑥ Welding without sparks and smoke, both environmentally friendly and safe;
⑦ Improve welding quality and ensure the reliability of product conductivity.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
