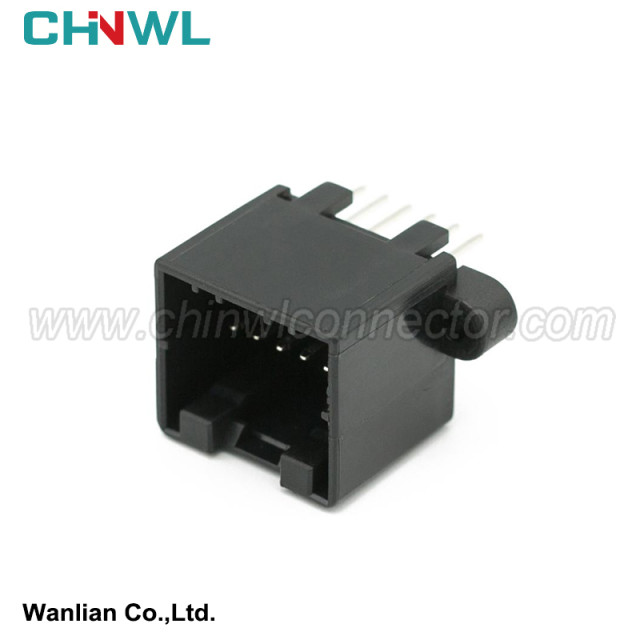

12 pin 174973-2 Auto Car Cable Connector PCB Mount Header Vertical Wire-to-Board

Battery separator structure
a) Plastic partition b) Bag type partition
When installing the separator, the grooved side should face the positive plate, and the groove must be perpendicular to the bottom of the case. Because the chemical reaction of the positive plate is intense during the charging and discharging process, the groove can make the electrolyte flow up and down, also make the air bubbles rise along the groove, and also make the shed active material sink down along the groove.
Maintenance-free batteries generally use polyvinyl chloride bag separators. When in use, the positive plate is covered by the separator bag, and the shed active material remains in the bag, which not only prevents the short circuit of the plate, but also cancels the protruding ribs at the bottom of the shell, increasing the volume of the upper part of the plate, thereby increasing Large electrolyte storage capacity.
3. Electrolyte
The electrolyte of the car battery is prepared by a certain ratio of concentrated sulfuric acid with a density of 1.84g/cm3 and distilled water. The proportion of sulfuric acid in the electrolyte is called the relative density of the electrolyte, usually referred to as the density of the electrolyte. According to the provisions of the national standard GB/T 5008.1-2013 "Lead-acid batteries for starters Part 1: Technical conditions and test methods", the density of the electrolyte when the vented batteries for automobile starters are fully charged should be at 25 °C. Keep it within the range of 1.27～1.30g/cm3.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
