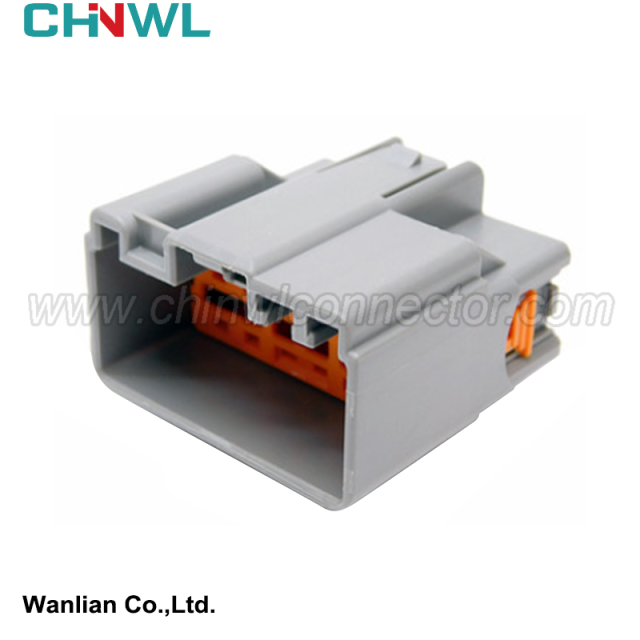

Wanlian #: WL122B3-2.8-11
Mfr. #: 7282-6467-40
Wanlian part number: |
WL122B3-2.8-11 |
Original number: |
7282-6467-40 |
Gender: |
Male |
Specification: |
Housing: PBT+G; PA66+GF; PA66; PBT; Nylon |
Type: |
Connector |
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
Yes |
MOQ: |
No minimum order quantity |
Supply sample: |
Yes |
Customized drawing with Decal, Frosted, Print are available as request |
Yes |
Payment method: |
We accept Paypal, TT, Alipay, West Union etc. |
Transportation method: |
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
Production Capacity: |
1000000pieces/Month |
Let's briefly explain the design process of the car beam.
1. The design process of the schematic diagram
① Draw the electrical appliances schematic diagram according to the electrical configuration and technical requirements required by the "Electrical Design Mission".
② Determine the melting capacity and wire diameter according to the power of each electrical appliance, and the load distribution of each electrical factor system to determine the capacity of the total melting.
③ Calculate the wire diameter according to the following formula.
I = p/u, A = IρL/Ud (18-1)
In the formula, i is current (A); P is the power of the electrical component (W); u is voltage (V); A is a wire diameter (MM2); The length of the wires (m); UD is the maximum voltage reduction loss.
At the same time, the following situation must be considered:
① If the wire is too long, you can enlarge the wire diameter appropriately.
② The wire is connected to the use of electrical appliances after multiple plug -in connections. Considering that the terminal voltage drop is large, the wire diameter can be enlarged appropriately.
③ Different forms of wires have different allowable current and line voltage drops.
Simple instructions:
We have product Catalogue,please contact us on skype,WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
