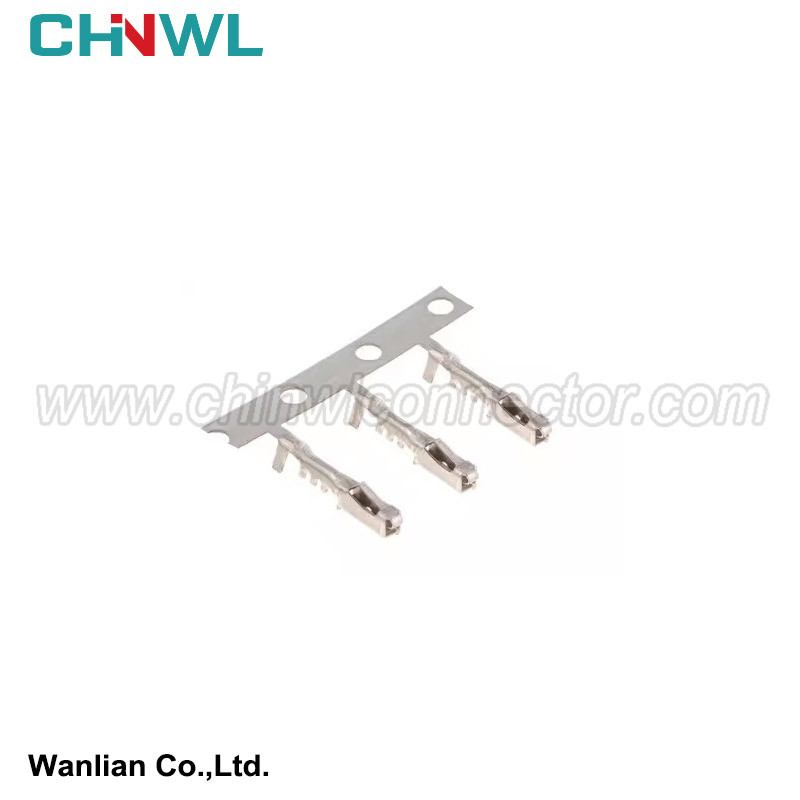

12064971 Connector Crimp Terminals Replacement Of Unsealed Tin Plating Terminal Connectors

Second, the manufacturing steps of the molding mold

1. Read the design pattern of the mold, master the characteristics and principles of mold structure

When reading the pattern design of the model, first understand the parts of the stamping parts, and understand its basic shape, size accuracy, technical requirements and materials required. If necessary, the sample can be processed according to the part diagram so that it can be used as a sample in the process of molding and model testing. Secondly, refer to the molds of the mold to understand the structure of the mold, analyze the interrelationship relationship between its action principles and the components and its role in the mold. Then, understand the parts and components of the mold, master the technical requirements of each component, use materials, and determine its processing technology and equipment and processing characteristics. Finally, according to the process and process diagram, list the details of the mold parts and processing process, and prepare the processing order of parts.

2. Prepare the ingredients

According to the details of the material, the quality of the materials required for each part is calculated. According to the facts of this factory, materials and preparation are selected, and forging, annealing or receiving the preparation of standard blank parts. At the same time, according to the requirements of the pattern, collect or purchase standard parts required for manufacturing molds, such as screws, nails, springs and unloading rubber.

3. Katana

For the blank parts after the grinding plane, the fitter should be scratched according to the pattern, and the punching is easy to process.

4. Rough processing of parts

According to the requirements of the pattern, the prepared blank parts are sent to the mechanical processing workshop according to the craft route formulated by the process drawings for rough processing.

5. Exquisite processing

Portable processing is performed in the sequence of process graphs and process. In the absence of electricity processing equipment, the blank parts should be carried out before the heat treatment. The blank parts should be drilled by the piercing, the attack thread, the drilling, and the hinge of the hinge. After the heat treatment is harder, the forming grinding machine, electric spark and wire cutting and processing are used.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
