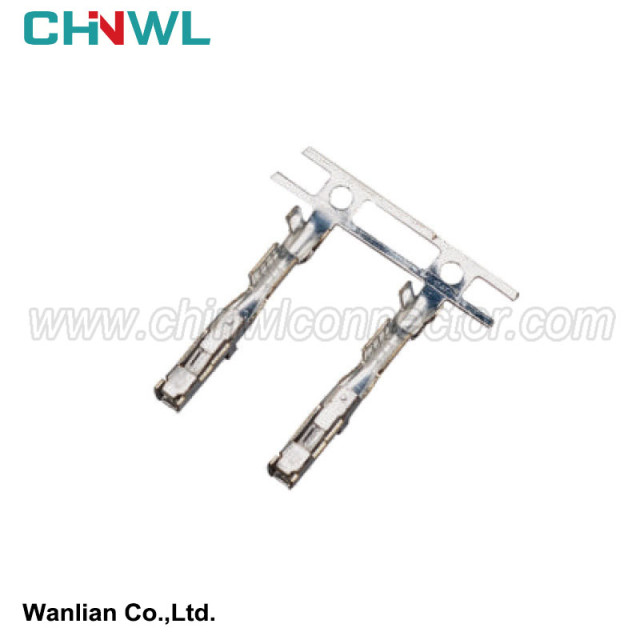

Wanlian part number: |
|
|
|
Original number: |
|
1356778 |
|
Gender: |
|
Female |
|
Specification: |
|
Copper Alloy, Brass, Phosphor Bronze, Nickel. |
|
Type: |
|
Terminal |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
The specification of JCASE fuse is 20~60A. It is mainly suitable for large current loads such as rear defrosting, air conditioning blower, cooling fan, etc.;
Midi fuse specifications 30~200A, suitable for loads with a current not exceeding 200A, such as the large fuse at the battery fuse box;
The specification of Mega fuse is 40~500A, the product with the highest rated current on the market at present, suitable for circuit protection of high current and high pulse. Such as battery, generator protection
3 Trends in fuse selection
When selecting a fuse, in addition to considering the load type and load current, the development of the fuse must also be considered. It is necessary to comprehensively select the type of fuse based on the development trend of fuses.
Understanding the development trends of fuses will help us better match the design of fuses. The future development trend of fuses is miniaturization. Therefore, for new platform models, miniaturized fuses are the direction we need to focus on. The picture below shows the development trend of fuses, as follows:
Figure: Development trend of fuses
| 4 Selection of fuse capacity
The fuse is also called a fuse. Its main function is to protect the wire. That is, when the load is overloaded/short circuited, the load current increases and the fuse overheats and blows, thereby protecting the wire and effectively preventing the wire from softening and burning due to load overload/short circuit. occur.
Conditions for fuse capacity selection:
1) Fuse capacity > load operating current
2) Fuse capacity < wire current carrying capacity
Condition 1 is the basis for normal selection of fuse capacity. Condition 2 reminds us of the original intention of designing fuses in the circuit, that is, fuses are used to protect wires, and wires need to be selected and checked simultaneously.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
