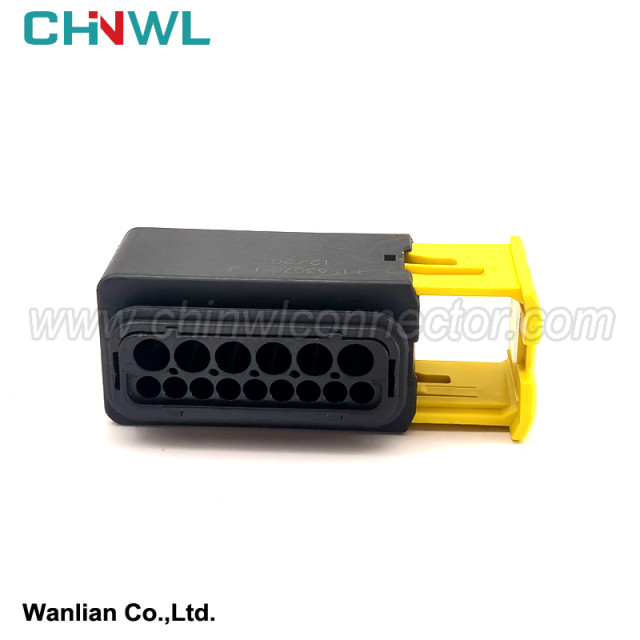

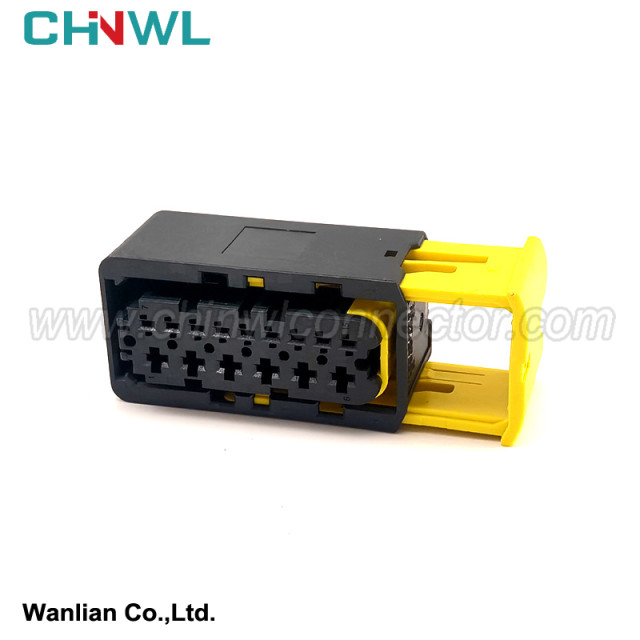

Wanlian #: WL1531-1.5-3.5-21
Mfr. #: 1-1563878-1
Mating #: WL1531-1.5-3.5-11
Accessories: Terminal Seal
|
Wanlian part number: |
|
WL1531-1.5-3.5-21 |
|
Original number: |
|
1-1563878-1 |
|
Gender: |
|
Female |
|
Specification: |
|
Housing: PBT+G; PA66+GF; PA66; PBT; Nylon |
|
Type: |
|
Connector |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
Standard: When the ambient temperature is (23±2)°C and the relative humidity is 45% to 75%, the insulation resistance between the positive (E), negative (F) output and the body (shell) is ≥1000MΩ. When the humidity is 90% to 95%, the insulation resistance is ≥20MΩ.
Positive and negative insulation performance test of on-board charger
4) DC-DC converter positive and negative insulation performance test: disconnect the negative pole of the low-voltage battery, unplug the high-voltage accessory harness plug of the high-voltage box, connect the black test lead of the insulation resistance meter to the vehicle body, and measure the high-voltage accessory harness plug of the high-voltage box one by one with the red test lead Positive and negative electrodes.
Standard: When the ambient temperature is (23±2)°C and the relative humidity is 80% to 90%, the insulation resistance between the positive (A), negative (G) output and the body (shell) is ≥1000MΩ. When the ambient temperature is -20-65°C and the relative humidity is 5%-85%, the insulation resistance between the positive (A), negative (G) output and the body (shell) is ≥20MΩ.
DC-DC converter positive and negative insulation performance testing
5) Insulation performance test of the positive and negative terminals of the air conditioner compressor: disconnect the negative terminal of the low-voltage battery, unplug the high-voltage accessory harness plug of the high-voltage box, connect the black test lead of the insulation resistance meter to the vehicle body, and measure the positive pole C of the high-voltage accessory harness plug of the high-voltage box one by one with the red test pen and negative electrode H
Standard: After filling (50±1) cm3 of refrigerating machine oil and (63±1) g of HFC-134a refrigerant into the air-conditioning compressor, the insulation resistance of the positive and negative poles of the air-conditioning compressor to the body is ≥5MΩ; empty the refrigerating machine oil Finally, the insulation resistance of the body shell is ≥50MΩ.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
