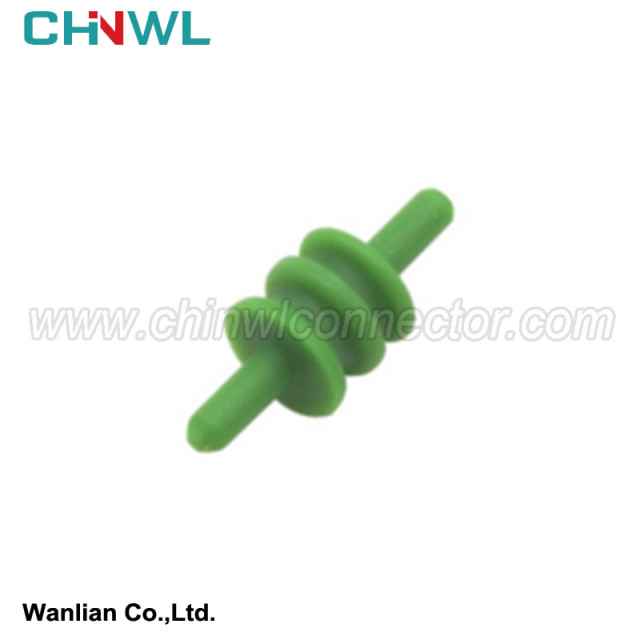

15305171 Car Connector Waterproof Plug Rubber Ring Sealing Plug

The chassis beam classification includes the following parts.

a) The front of the front frame lines: engine ECU, generator, starter, solenoid valve, etc.

b) Engine pre -installed wire bundle: generator, starter (with pre -installed wire beam) and so on.

c) The rear car rack beam assembly: differential lock switch, second throttle, taillights, etc.

d) Flip mechanism cable: flip switch, beeurge, etc.

e) Garway wiring bundle: air gear switch, inverted switch, high and low transmission switch, and force switch.

f) power cord: connect to the battery to the starter.

2.2 Selection part

The vehicle also has some selected assembly, which includes the brake beam assembly, the ABS wire beam (indoor) and the Panqiao wire beam assembly. Among them, the brake beam assembly contains the solenoid valve and the speed sensor; the ABS wire beam contains the ECU and ABS switch;

Wiring beams are bandaged to resist abrasion, flame retardant, anti -corrosion, prevent interference, reduce noise, and beautify the appearance. The types of parcels generally include tape, ripples, PVC hoses, woven pipes, etc. Choose different parcels in different environments. Under normal circumstances, consider the following principles.

a) In a place where the dry area, good fixed, and not affected by the outside world, use PVC tape, cloth tape to wrap or wrap or soak nylon cloth. This structure is flexible and easy to wiring. It is generally on the dashboard board. Generally on the dashboard board Use. The PVC tape should meet the requirements of QB/T 2423-1998 "Polyl Chloronal Dylite (PVC) electrical insulating voltage sensitive stick".

b) When it is possible to contact, friction, and impact with other components, it is protected by ripples.

c) When passing through the holes, the hole should be protected with rubber cover, and the wiring beam is used with a ripple or PVC hose. When bending in a narrow place, or when you need to cross the sharp edge, use a moisture to protect it. If you are near the exhaust pipe, the heat insulation treatment is also needed. Regardless of the tube or PVC hose, the PVC tape is used at the end of the end.

d) The cables with special waterproof requirements must use the heat shrinkage tube with dense seals.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
