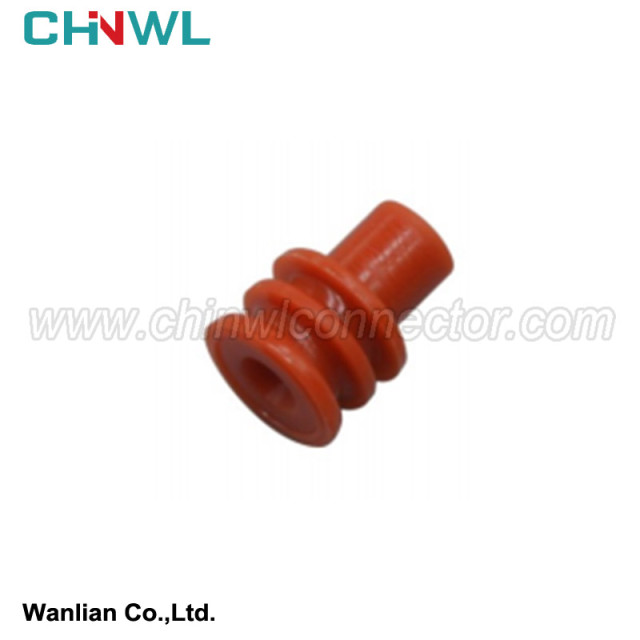

15324973 12052924 12048086 Delphi Automotic Waterproof Plug Silicone Rubber Seal Connector

03 Two points pressure

This pressure connection form also adapts to the relatively thicker pore connector and pressing barrel with relatively thicker wall thickness, but the size of the hole -type connector and the pressing barrel is larger, and the method of a bit of pressure connecting is not enough to make the pressed terminal fully deforming the terminals of the pressure connector. Only this pressure connection form. The cross -section shape after pressing is shown in Figure 4.

In this form of pressure, the power is very large. The beam factory generally achieves the pressure connection through special molds on the crushing bed, thereby achieving accurate and controlling the height of the pressure connection.

04 Four points pressure

This pressure connection form adapts to the relatively thick wall thickness and relatively small airline plug -in pins. The typical structure of the terminal is shown in Figure 5A. The cross -section shape after pressing is shown in Figure 5B. The pressure of this terminal is stressed from all sides, forming 4 pit pits.

This form of pressure connecting, exerting force from all sides, uniform force, and excessive terminal materials, there are places to run, the pressure of pressure connection is not very large, it is the best form of pressure connection effect, but the form of the pressure connection form requires The structure of the pressure connection mold is relatively complicated, and of course the cost of investment is relatively high. At the same time, due to the complexity of the pressure connection mold structure, the design of the pressure -connected mold of the larger terminal is also difficult. Therefore Pressure of small terminals.

This type of pressure connection is mainly used in the automatic part of the car lines, and it is not used in the car wire beam.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
