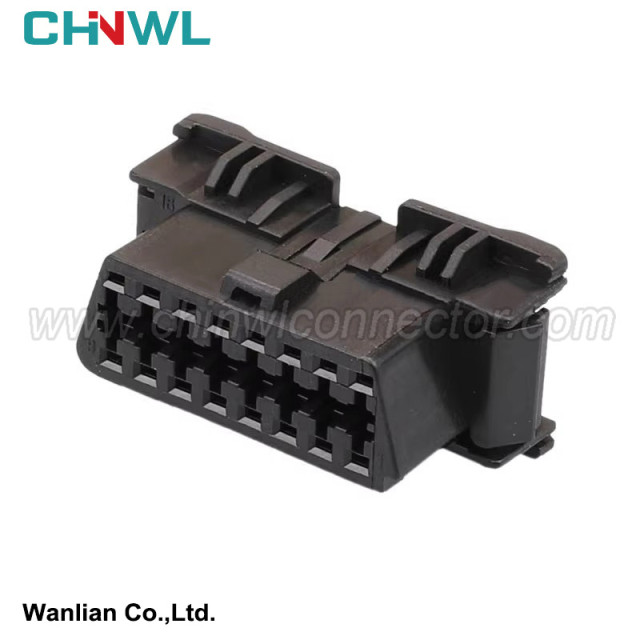

Wanlian #: WL162E1-1.8-21
Mfr. #: 7183-7665-30 7157-4694
|
Wanlian part number: |
|
WL162E1-1.8-21 |
|
Original number: |
|
7183-7665-30 7157-4694 |
|
Gender: |
|
Female |
|
Specification: |
|
Housing: PBT+G; PA66+GF; PA66; PBT; Nylon |
|
Type: |
|
Connector |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
4. Three -dimensional wiring wiring design
The three -dimensional wiring design principles are as follows:
① When crossing metal pieces or metal edges, the wire beam must be protected by elastic cover.
② When designing metal holes, there must be a rubber cover.
③ The wire beam should be arranged along the edge and along the groove to prevent the wire beam from directly undergoing pressure.
④ The wiring beam must be reliable and fixed on the body, and there is no suspended wiring greater than 300mm.
⑤ The size of the wire beam should comply with the provisions of QC/T 29106-2014. Among them, the limit deviation of the nominal size of the wire beam is shown in Table 18-2.
⑥ The line beam should be as far away from high -temperature heat heating objects to avoid damage to heat conduction and radiation heat.
间 The cable beam between exercise and opening and closing must leave the maximum opening length, and consider the accumulation space and fixed method when the minimum opening.
⑧ need to connect to the electrical component, insert it, and return to the fixed wiring beam. Leave enough length to pull out the length required when operating, and consider the fixed stacking space and fixing method.
The wiring wiring consider the sequence of the process assembly and the convenience of assembly.
Consider the occupation space and docking operation space of the plug -in.
(11) The part of the operation space of both hands cannot be achieved, and one side of the interpretation should be fixed for one -handed operation.
(12) When passing through the narrow hole for a long distance, it should be required to add the sinking holes in the middle of the structural part to facilitate the rotary beam.
(13) Try to consider the module modular assembly as much as possible to improve the speed of production line assembly.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
