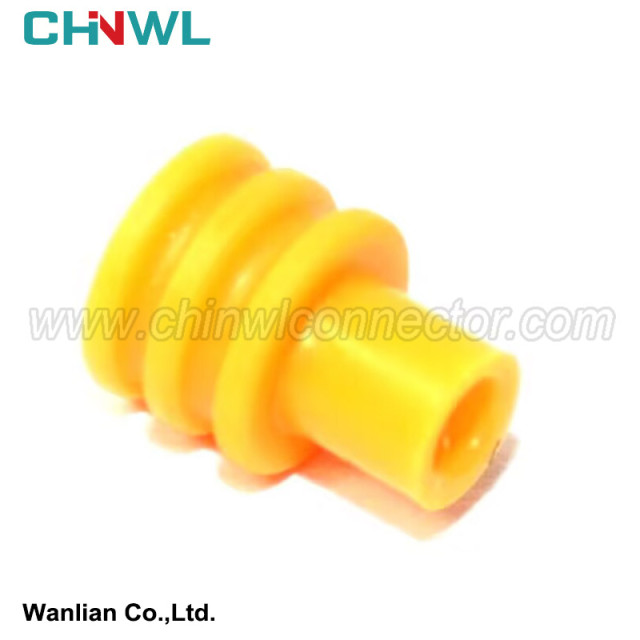

1928301085 1,928,301,085 Auto Rubber Seal Plug High Quality Superseal Wire Seal For Auo Wiring Waterproof Connector

To find a connector that meets all your design standards and is exactly suitable for your application. Correct rated current, rated voltage, circuit size, joint force, line regulation ability, structure, end -connection method and security characteristics, such as positive locking, completely independent contacts, polarity, and agent qualifications, so In short, you have found the perfect connector.

But it is not enough to breathe completely, especially if the connector you choose uses a pressure connection system. Although this may be one of the fastest, most reliable, and solid -ending methods, if the terminal does not correctly press on the cable, you will forget all the hard work that you pay on the correct connector. Although there are 13 common pressure problems to reduce the reliability of your products, only small knowledge and pre -planning can simply avoid these problems.

First, understand the terminals with three main parts: plug -in area, transition area, and pressure -connected area (Figure A), which helps us understand. As the name suggests, the insertion area is a part of the terminal and the other half connecting terminal insertion. This part is designed by the designer to connect with the docking terminal and work in a certain way. If the junction is deforming during the pressing process, the performance of the connector will be reduced.

The transition zone is also designed to be not affected during the pressure connection. If you change the position of the elastic sheet or terminal stop, it will also affect the performance of the connector.

The pressure connection area is the part of the design affected by the pressure connection process. Use the end -connecting device recommended by the connector manufacturer to clamp the pressure area to firmly connect to the cable. Ideally, all the tasks of pressing the terminal on the cable only occur in the pressure area.

See the correctly executed pressure connection example (Figure B). The insulation pressure area is compressed to the insulation layer, but it will not pierce. The distance between the lines (or wire brush) extends to the front of the conductor pressure connection area is at least equal to the diameter of the cable conductor. For example, 18 AWG cables should be extended at least .040 ". In the part between the insulation and conductive pressure area, you can see the insulation layer and the conductor. The junction zone has always remained unchanged before and after the pressing process.

If your crushing terminal looks different from the terminal of Figure 5, it may be because there are errors in the pressure connection process. Here is the 13 most common problems that may occur in the connection process, as well as how to avoid them.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
