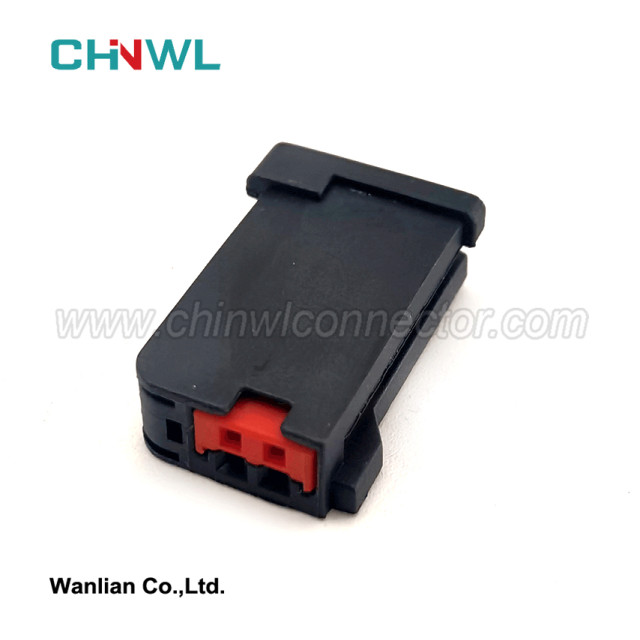

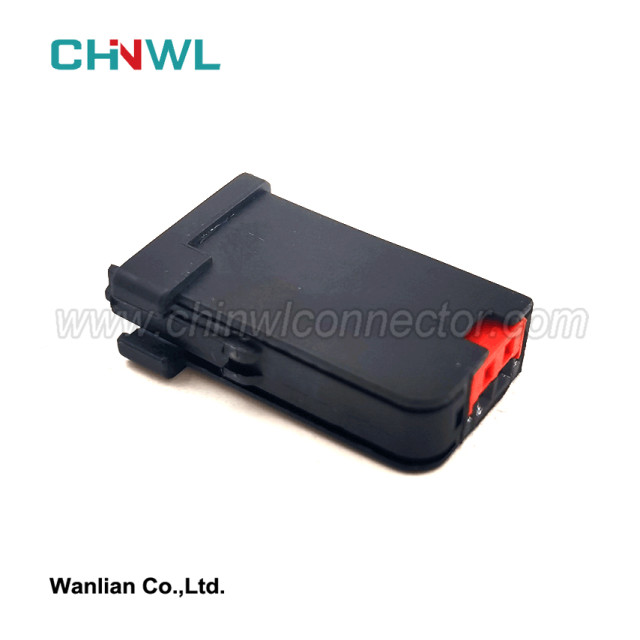

2 pin AIT2PB-02G-1AK Auto Plug Wiring Unsealed Plug Electrical Connector With Terminals 0.6 Series

Insertion and extraction force test

Therefore, the plating of the terminal not only protects the surface of the terminal material from corrosion, but also improves the insertion force state. However, considering the functionality and economical cost-effectiveness, in addition to considering the insertion and extraction force design, we must also refer to the following usage conditions to select the appropriate terminal plating:

①Can withstand the actual temperature working conditions of the terminal;

②Environmentally friendly and non-corrosive;

③Has chemical stability;

④ Ensure terminal contact;

⑤ Wear insulation that reduces friction;

⑥ Low cost.

As the electrical environment of the vehicle becomes more and more complex and the new energy era arrives, only by continuously exploring the manufacturing technology of components can we meet the rapid iteration of new functions.

With the rapid development of the automotive industry, the demand for automotive connectors is also increasing. Therefore, while developing simultaneously with the OEM, each connector manufacturer can select suitable products from existing connectors based on the connector design input.

This kind of connector selected based on design input can not only meet the functional requirements, but also eliminates the need to re-develop molds; it not only improves production efficiency, but also saves production costs.

Therefore, it is particularly important to select existing automotive connectors based on design input. When selecting existing automotive connectors based on design input, the design factors that need to be considered include: location of use, actual voltage and current, number of holes required, wire diameter requirements, assembly force and assembly space requirements. Ask to wait.

When selecting a connector, you must first determine the location where the connector is used. The location directly determines the ambient humidity and temperature of the location.

The ambient humidity determines the sealing performance of the selected connector, and the ambient temperature determines the material of the selected connector.

Determine whether the selected connector is waterproof based on the location of use

Automotive connectors can be used to determine whether the selected connector needs to be waterproof based on the wading depth of the car's wading line.

The wading depth of the vehicle can be based on the diameter of the tire, with the upper limit of the vehicle diameter being the minimum wading depth. In this way, whether it is a car or an SUV, the wet and dry areas of the connector can be distinguished by the diameter of the tire: the area below the wading line (including the wading line) is defined as the waterproof area, and the area below the wading line is defined as the waterproof area.

The above area is defined as a non-waterproof area.
It should be noted that the engine compartment and trunk are easily exposed to liquids due to their functions, so the engine compartment and trunk can be defined as waterproof areas.
