Wanlian #:

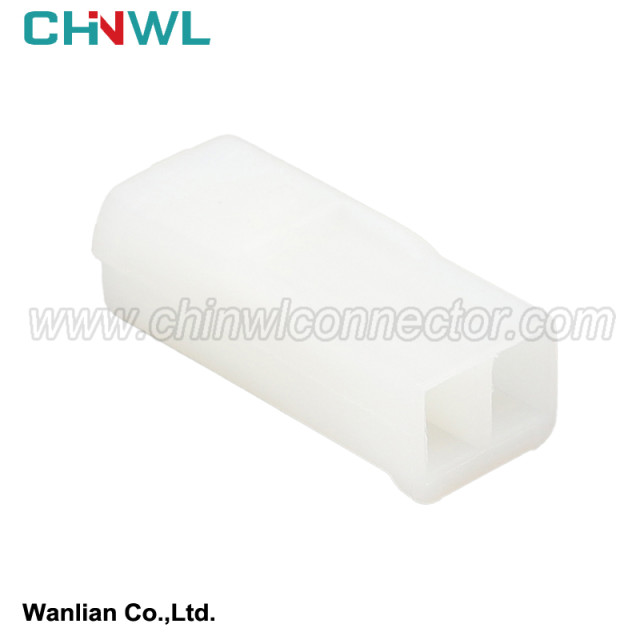

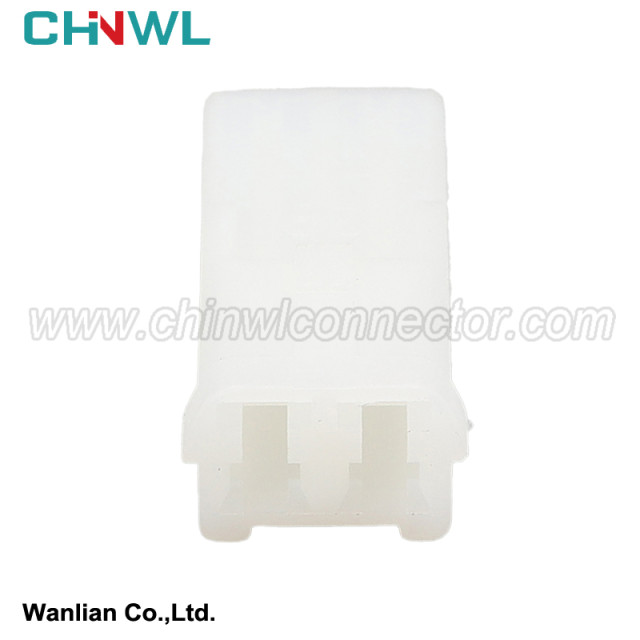

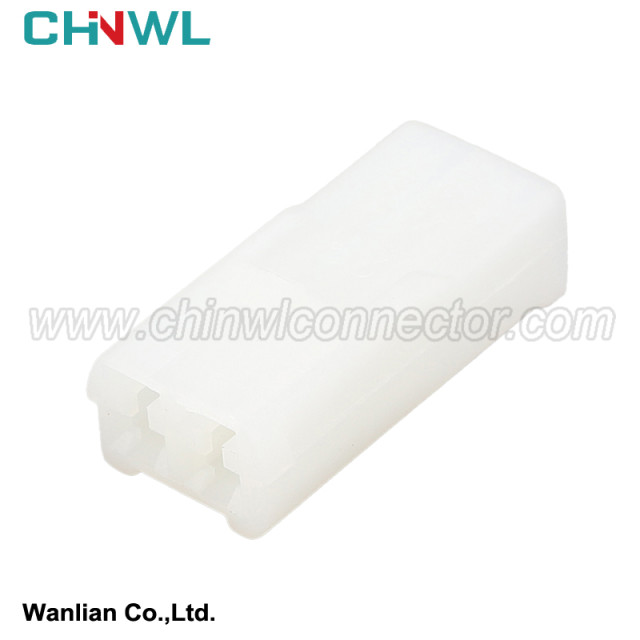

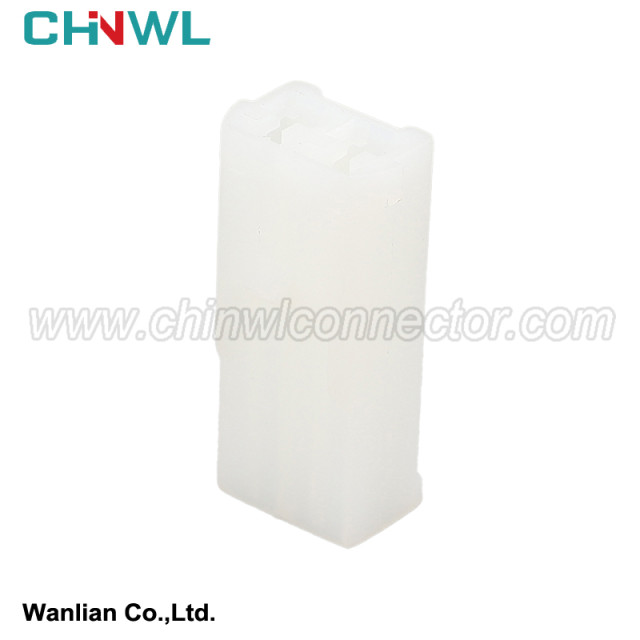

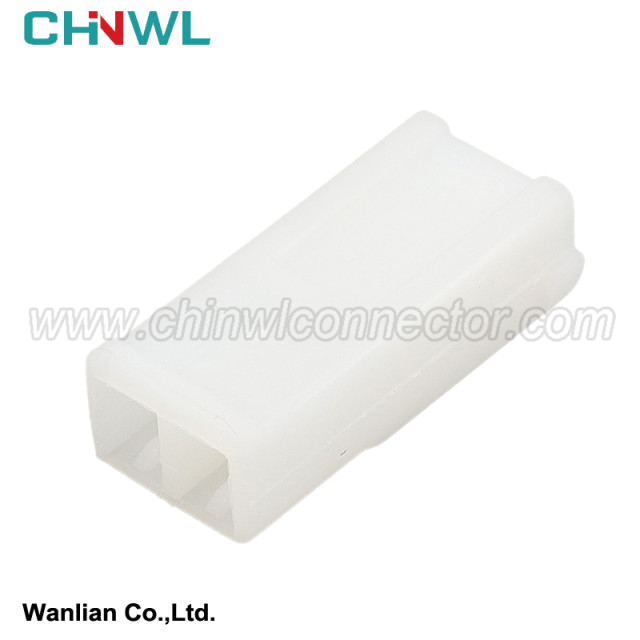

Mfr. #: MG651026
|
Wanlian part number: |
|
|
|
Original number: |
|
MG651026 |
|
Gender: |
|
Female |
|
Specification: |
|
Housing: PBT+G; PA66+GF; PA66; PBT; Nylon |
|
Type: |
|
Connector |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
NO.5 The tip is cut flat
Reason: The terminal crimping position and the position of the mold cutting knife are not adjusted properly, or the terminal transport grip is unstable.
Consequences: It makes it difficult for the terminal and the plug-in to cooperate. (Common terminals include 4.8, 6.3 lockable and straight-in terminals.)
NO.6 The rear incision is long
Reason: The terminal crimping position and the position of the mold cutting knife are not adjusted properly, or the terminal transport grip is unstable.
Consequences: If the rear end is too long, it will cause the front end to be cut flat. The consequences are the same as No. 5. In addition, the long rear end can easily come into contact with other metal objects, causing a short circuit in the circuit, and the consequences are also very serious.
NO.7 No bell mouth at the rear end
Reason: The core wire crimping blade is not adjusted in place.
Consequences: The blade can easily damage the core wire, causing the terminal's pulling force to be smaller. Affect the service life of the terminal.
NO.8 Bayonet distortion and deformation
Reasons: Poor raw materials, poor crimping, or mutual hooking and pulling during product movement, etc.
Consequences: The assembly is not tight and in place, and the product easily falls off when it reaches the customer.
NO.9 terminal is turned up
Reason: Mold debugging, poor coordination between the upper and lower molds, or the die is stuck to the terminals. (Terminal bending is generally within 15 degrees up and down)
Consequences: Poor assembly and coordination may result, and the terminals may easily fall off from the socket.
NO.10 Terminal Bend Down
Reason: Mold debugging, poor coordination between the upper and lower molds, or the die is stuck to the terminals. (Terminal bending is generally within 15 degrees up and down)
Consequences: Poor assembly and coordination may result, and the terminals may easily fall off from the socket.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
