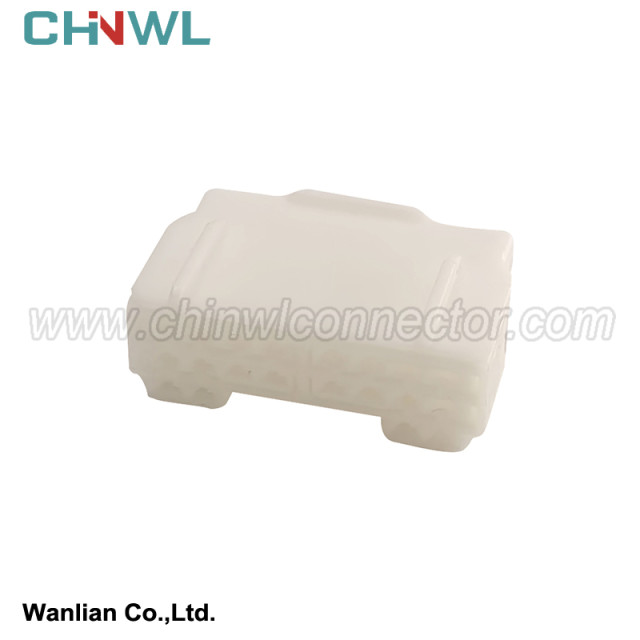

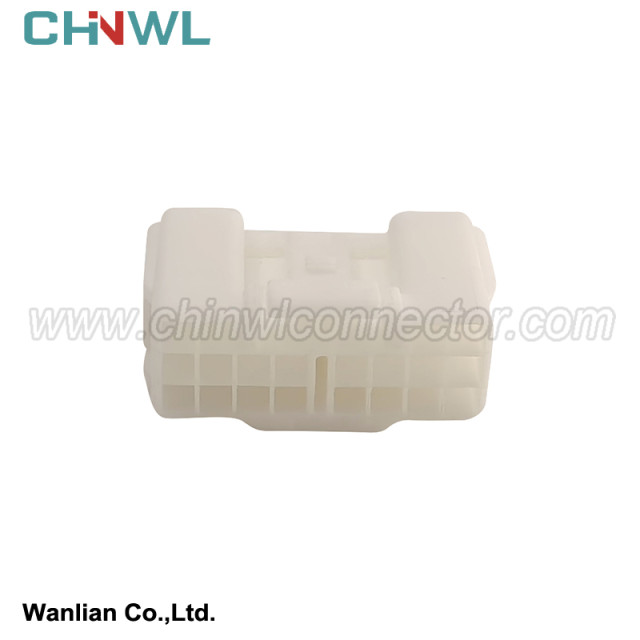

20 Pin / 20 pin 6098-7360 6098-7364 Automobile Replacement Connector Auto Low Current Cable Adapter White Miniature Car Socket 0.6 Series

20 pin 6098-7360 6098-7364 Automobile Replacement Connector Auto Low Current Cable Adapter White Miniature Car Socket 0.6 Series

Wanlian #: WL2052-0.6-21

Mfr. #: 6098-7360 6098-7364

Mating #: WL2052-0.6-11

Accessories: Terminal Seal

Online Inquiry

    Wanlian part number:

     WL2052-0.6-21

    Original number:

     6098-7360 6098-7364

    Gender:

     Female

    Specification:

    Housing: PBT+G; PA66+GF; PA66; PBT; Nylon

    Type:

    Connector

    TUV, TS16949, ISO14001, ISO 9001, RoHS conform:

    Yes

    MOQ:

    No minimum order quantity

    Supply sample:

    Yes

    Customized drawing with Decal, Frosted, Print are available as request

    Yes

    Payment method:

    We accept Paypal, TT, Alipay, West Union etc.

    Transportation method:

    Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc.

    Production Capacity:

    1000000pieces/Month

6098-7360 6098-7364



Application of High Voltage Connectors in Vehicle Systems
The connector for new energy vehicles is one of the connector categories. It is a type of connector that has been gradually separated from traditional high-voltage and high-current and traditional low-voltage automotive connectors in recent years with the development of new energy vehicles in the country. Compared with traditional high-voltage and high-current connectors, the working conditions of connectors for new energy vehicles are more complex and changeable, and the reliability requirements for connectors are higher; compared with traditional low-voltage automotive connectors, due to the increase in voltage level ( At present, the voltage of the mainstream system is higher than 300V DC), which increases the risk of electric shock injury to the human body, and has higher requirements for the safety of the connector; therefore, the insulation and protection requirements of the product are higher than those of the traditional low-voltage plug-in.
The function of the connector for new energy vehicles is mainly to ensure the high-voltage interconnection system of the vehicle, that is, to build a bridge where the internal circuit is blocked or isolated so that the current can flow. The composition of new energy vehicle connectors can generally be divided into three parts: auxiliary structures such as shells and seals, insulating parts, and conductive contact pairs. The function of connection and conduction can be achieved through the mating and mutual cooperation between the plug sheath and the socket sheath. High-voltage connectors are mainly used in the high-voltage and high-current circuits of new energy vehicles, and they work with conductive cables at the same time to transmit the energy of the battery pack to various components in the vehicle system through different electrical circuits, such as battery packs, motor controllers, DCDC Body power units such as converters and chargers.




Simple instructions:

We have product Catalogue,please contact us on skype,WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.

The Keywords of this product:Automotive Connectors Terminals Plugs
