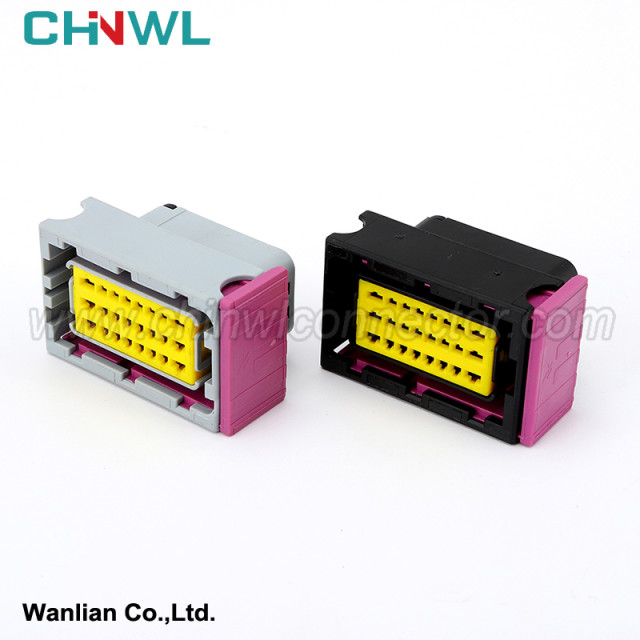

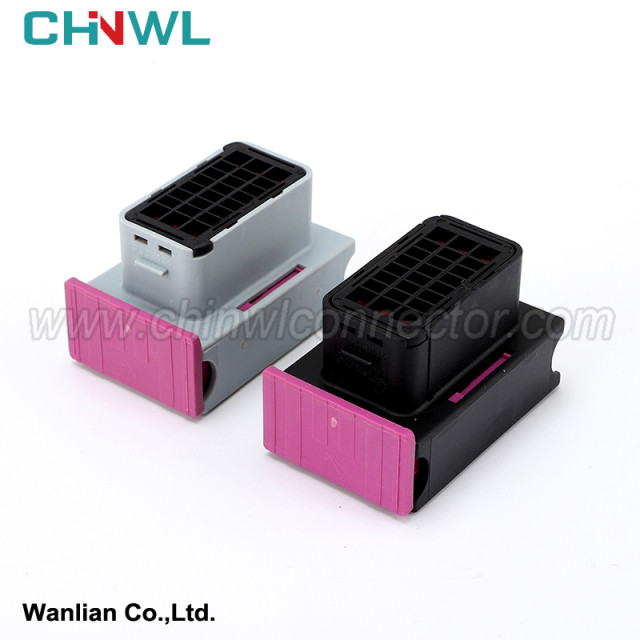

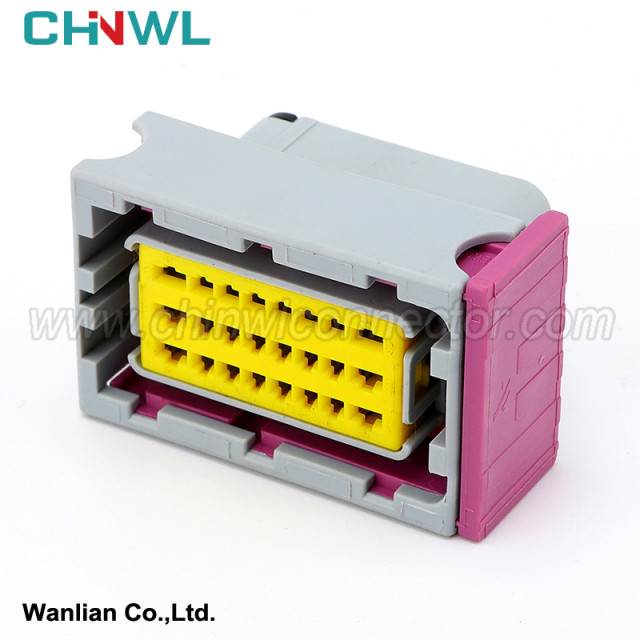

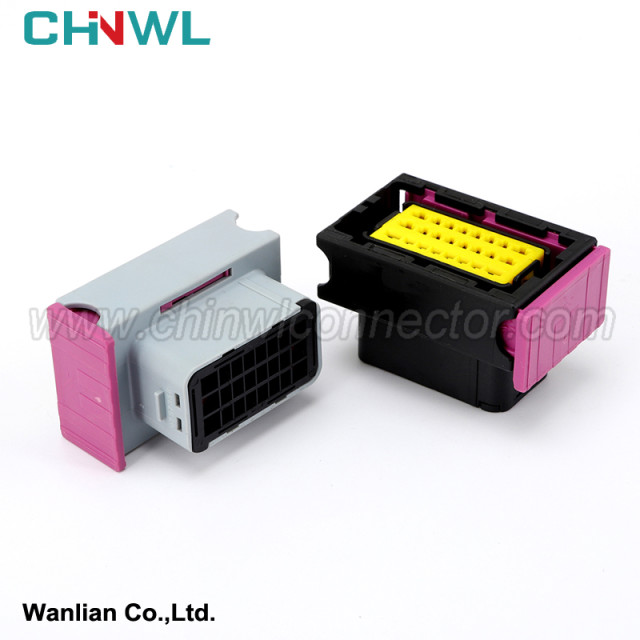

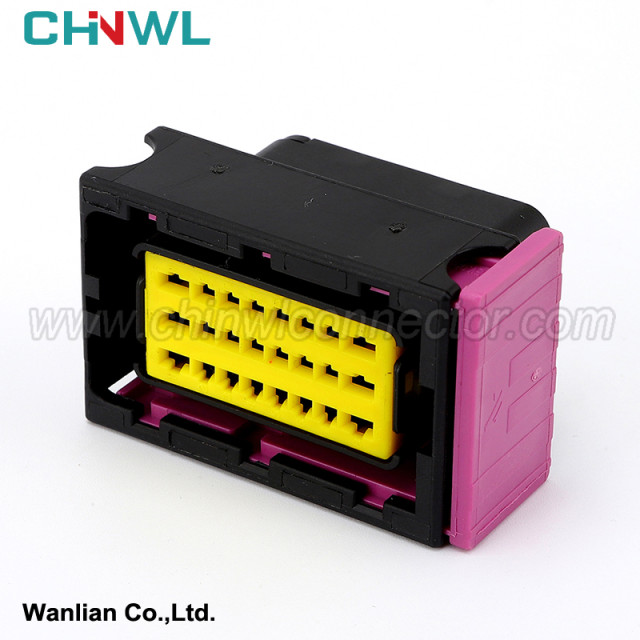

Wanlian #:
Mfr. #: 211PC24958005
|
Wanlian part number: |
|
|
|
Original number: |
|
211PC24958005 |
|
Gender: |
|
Female |
|
Specification: |
|
Housing: PBT+G; PA66+GF; PA66; PBT; Nylon |
|
Type: |
|
Connector |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
2.6.2 light combination switch
Lighting and signal lights on some cars are controlled by combined switching, that is, small lights, headlights, light change, steering, and the flash of the car are controlled by a switch. The light combination switch is common to rotate the combination switch. Most of them are installed on the lower left of the steering wheel, and the left hand is manipulated.
Light switch circuit diagram
2.6.3 light control switch
The axis of the light control switch can be twisted around the handle to control its small lights and headlights, divided into three gears:
"O" gear, the lights are turned off, and all the lights are extinguished; "" gear, front lights, taillights, license plate lights, instrument board lights lit; "" gear, near -light lights, front lights, taillights, licensed lights, instrument instruments, instruments instruments The lamp is still lit. When the block is blocked, push the handle forward to change the high beam.
The fog lights can be used when the front light switch is located in the "" gear or "". Rotate the knob forward, turn on the fog light, rotate the knob back, turn off the fog light. You can see the switch status of the fog lights from the combination instrument. Turn the knob forward once and turn on the front fog light; turn it forward again, and light up at the same time with the fog lights and front fog lights .
Mist Light Control
The lower light combination switch, the left turn signal light will flash, indicating that turn to the left; the upper light combination switch, the right turn signal light will flash, indicating to the right .
2.6.4 Washinger and washinger switch
The function of the washing device is to spray water on the windshield, and the role of the water scraper is to scrape the windshield clean to ensure that the driver has a good vision. The scratchr and washinger switch is generally installed at the bottom right of the steering wheel.
The water scratchr and washinger switch is generally divided into the following gears: "OFF" is a closed position. When the water scratchr is placed in the "OFF" gear, the automatic return device is connected with the motor at a low speed. Transfer; intermittent work, when the operating rod is turned up to the "1" gear, the automatic return device is still connected with the motor at low speed. At the same time, the power supply and intermittent relay are connected. Work, when the operating rod is pulled up to 2 gear, the power supply and the motor are connected at low speed, and the motor operates at low speed; "HIGH" is a high -speed work. When the operating rod is pulled up to 3 gear, the power supply and the motor are connected at a high speed. Operating at high speed; "1x" is a dynamic scraping. When the "OFF" positions down the operating rod down, the motor is briefly connected at low speed and the motor is short -lifting; , Wash the window glass.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
