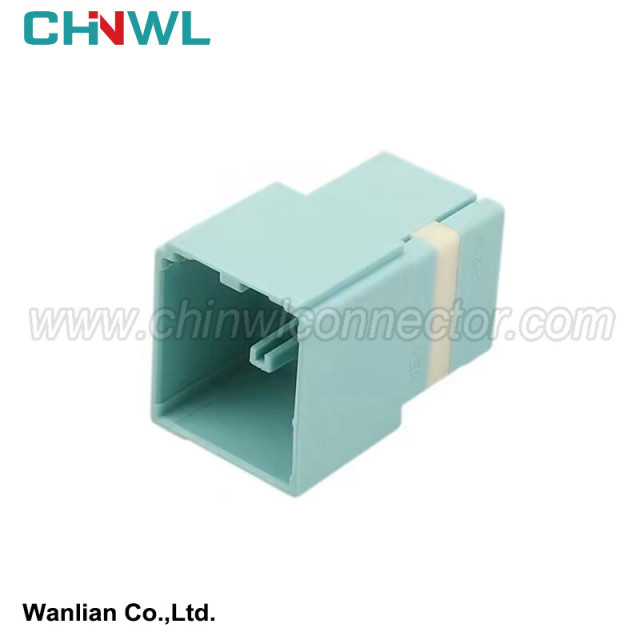

Wanlian #: 160014-0002
Mfr. #: 160014-0002
|
Wanlian part number: |
|
160014-0002 |
|
Original number: |
|
160014-0002 |
|
Gender: |
|
Female |
|
Specification: |
|
Housing: PBT+G; PA66+GF; PA66; PBT; Nylon |
|
Type: |
|
Connector |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
9. The pressure is too far forward
A more obvious pressure problem is that the part of the transition zone is damaged. In the terminal of the icon, the vertical protruding part is the design characteristics of the "terminal stop". Its function is to prevent excessive terminals from inserting into the shell. If the stop is completely damaged, the actual terminal will be pushed to the shell.
The solution is relatively simple. The reason for this problem is that the terminal and metal bars (when you receive the metal bar connected to the time terminal from the manufacturer) are incorrectly incorrect. Just relax the substrate that can be replaced tools, and then re -press the press to solve the problem.
10. The speaker mouth is too small
The correct size of the speaker mouth is twice the thickness of the terminal material. For example, if the terminal is made of a material with a thickness of .008 ", the speaker mouth should be about .016". Although the deviation of thousands of inch will not essentially affect the performance of the terminal. If the speaker mouth is lacking, or less than the thickness of the terminal material, there will be a risk of cutting core cores. The reduction of the reserved wire core will reduce the ending strength. To correct the problem, confirm that the jumping head and the avil seat on the pressing device are correct.
11. The speaker mouth is too large
If the speaker mouth is too large, there will be problems, because this will reduce the total area of the terminal interface with the cable. The smaller the contact surface of the cable and the terminal, the smaller the cable pulling force. If the pressure connection height is correct, it may be due to the problems caused by tool wear and should be replaced.
12. Tailing is too long
During the pressing process, the tail was cut off from the terminal. If the reserved tail is too long, there will be problems. When the terminal is inserted into the shell, the too long metal tail will extend to the rear of the connector, and the arc of adjacent contacts of the connector when applying a high voltage. If the tail material in the front of the terminal is too long, it will interfere with the combination of the connector and the "terminal collision".
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
