Wanlian #:

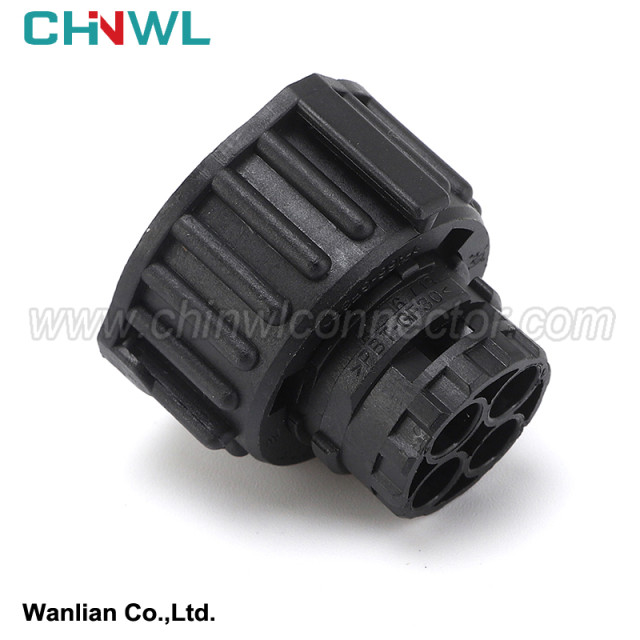

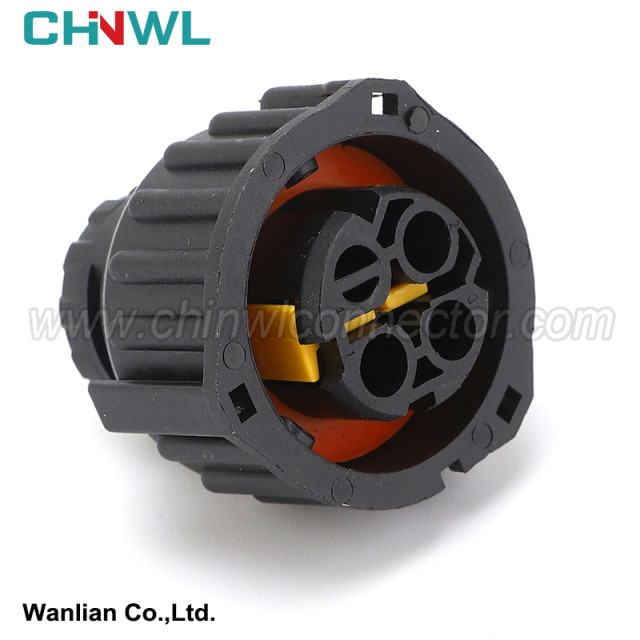

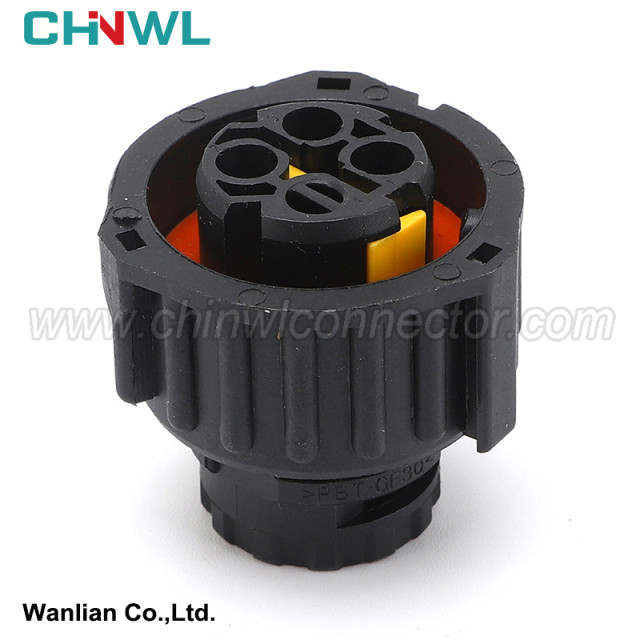

Mfr. #: 1-183099-2
|
Wanlian part number: |
|
|
|
Original number: |
|
1-183099-2 |
|
Gender: |
|
Female |
|
Specification: |
|
Housing: PBT+G; PA66+GF; PA66; PBT; Nylon |
|
Type: |
|
Connector |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
The choice of fuse sharing is related to the importance and safety level of electrical appliances. After the functional parts share the fuse, it is also necessary to consider the impact of the failure of other functional parts under the shared fuse when the shared fuse is blown due to the short circuit of a certain functional part after the fuses of the functional parts are merged. From this point of view, when it comes to safety functions, the fuses cannot be shared. For better illustration, the importance levels of functional parts are usually defined.
According to the classification of the electrical functions in the car, we divide the functional parts into three levels, as follows:
A-Important items. Refers to the operation of the car, the essential function of the car's operation safety.
Including engine control unit (PCM), brake anti-lock braking system control unit (ABS), airbag system control unit (SAS) and other control units related to vehicle safety. This type of electrical load is not only crucial to the performance and safety of the vehicle, but also this type of electrical equipment is sensitive equipment and is easily interfered by other electrical equipment. Therefore, a single fuse must be installed for this type of electrical equipment.
B-generally important items. Important functions, but they do not affect the operation of the car or the safety of the car.
Including various engine sensors, various alarm lights and external lights, front windshield cleaning device, horns, etc. This type of electric load is also crucial to the performance and safety of the vehicle, but this type of electric load is not sensitive to mutual interference. Therefore, this type of electric load can be combined with each other according to the situation, and a fuse can be used in common.
C-Common parts. Other functions that bring convenience to car use
Including car audio systems, electric heated seats, glove box lighting, electric rearview mirrors, electric window lifting systems, etc. This type of electrical load is not very important to the entire vehicle. Electrical equipment generally added to improve the comfort of drivers and passengers. Therefore, this type of electrical load can be combined with each other according to the situation and a common fuse can be used.
Principles of Fuses/Fuse Combined Sharing
Previously, we have introduced the purpose and significance of fuse merging of functional parts, and introduced the main considerations and analysis involved in fuse merging. For your reference, here is a summary of the design principles of fuse merging and sharing.
