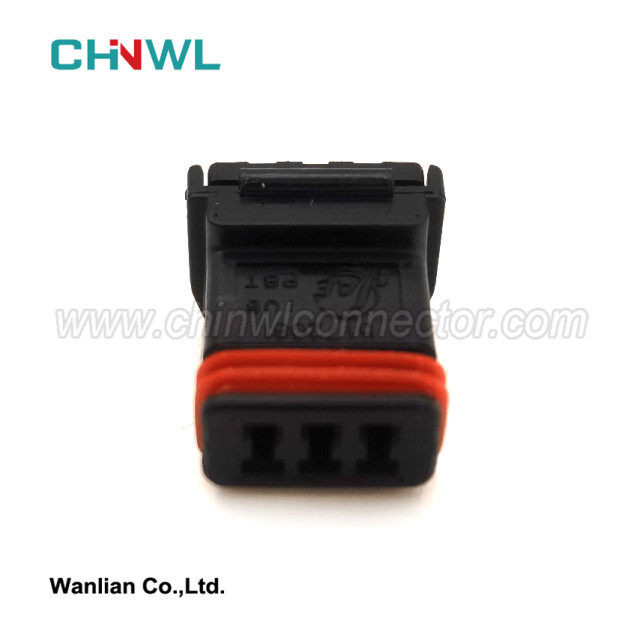

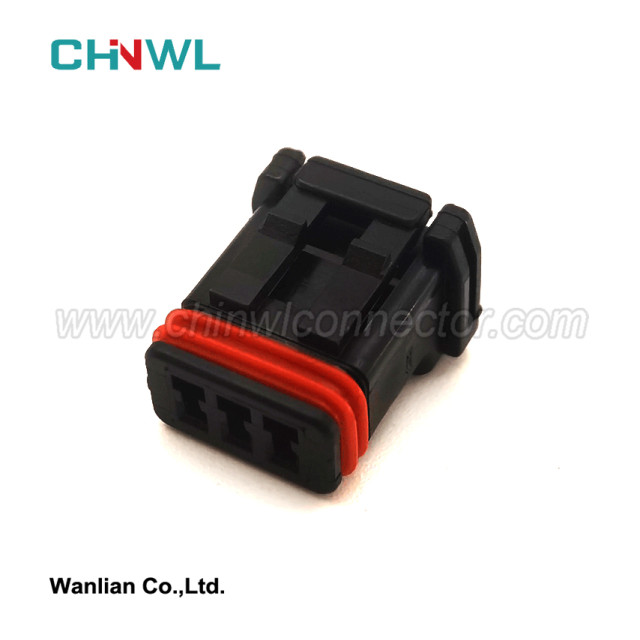

3 Pin / 3 pin MXA19003S51 Rear View Mirror Sealed Waterproof Plug Car Sensor Socket Small Connector 1.2 Series

3 pin MXA19003S51 Rear View Mirror Sealed Waterproof Plug Car Sensor Socket Small Connector 1.2 Series

Wanlian #: WL0381-1.2-21

Mfr. #: MX19A003S51

Online Inquiry

    Wanlian part number:

    WL0381-1.2-21

    Original number:

     MX19A003S51

    Gender:

     Female

    Specification:

    Housing: PBT+G; PA66+GF; PA66; PBT; Nylon

    Type:

    Connector

    TUV, TS16949, ISO14001, ISO 9001, RoHS conform:

    Yes

    MOQ:

    No minimum order quantity

    Supply sample:

    Yes

    Customized drawing with Decal, Frosted, Print are available as request

    Yes

    Payment method:

    We accept Paypal, TT, Alipay, West Union etc.

    Transportation method:

    Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc.

    Production Capacity:

    1000000pieces/Month

 MX19A003S51






1. Definition of wire harness: It builds a communication bridge between two or more isolated electronic circuits, so that current can flow and realize various functions of various electronic components. It is an important part of various electrical and electronic equipment. An indispensable component.

2. The composition of the wiring harness:

The components of an ordinary wiring harness are: wires, terminals, and plastic parts.

The components of complex wiring harnesses need to be added: tape, cable ties, sleeves, sheaths, labels, etc. Signal wiring harness: Injection molding is required. (See the pictures below for example products)

3. Wire harness processing technology

Thread cutting process·Points to note in this process:

Confirm the wire specification, model and color;

.Confirm the length of the lower line and the length of the stripping head;

Confirm whether there are any defects in the product after the machine is operated.

How to confirm the specification, model and color of the wire?

· First, determine the model of the wire, such as 1015, 1007, 1571, 2468, 1185, etc. · Secondly, confirm the specifications of the wire, such as 20AWG, 22AWG, 24AWG, 26AWG, etc. (Under the premise of the same wire type, the larger the wire number, the thinner the wire, the smaller the wire number, the thicker the wire). · Finally, confirm the color of the wire. When confirming, first confirm the label of the wire, and then confirm the printing on the wire.

crimping process

Definition of crimp

.Poor terminal crimping condition

.Causes and consequences of adverse events

· Definition: Crimping is a method of connecting wires and terminals during the cable assembly process. By applying a certain mechanical external force (referring to stripping the insulation of the wire and pressing the terminal to bite the conductor), the two materials are tightly connected. Joining to achieve electrical conduction or firm joining. Therefore, precise crimping tools can ensure good crimping quality. Currently, there are three types of crimping tools: manual tools, semi-automatic crimping equipment, and fully automatic crimping equipment.

· Function: Good crimping terminals can reduce resistance, reduce oxidation of copper wire at the crimping point, and have various excellent properties such as firm tightness and good conductivity. Strong tightness explanation: It will not be loosened or disconnected within a certain range after a tensile test.







Simple instructions:

We have product Catalogue,please contact us on skype,WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.

The Keywords of this product:Automotive Connectors Terminals Plugs
