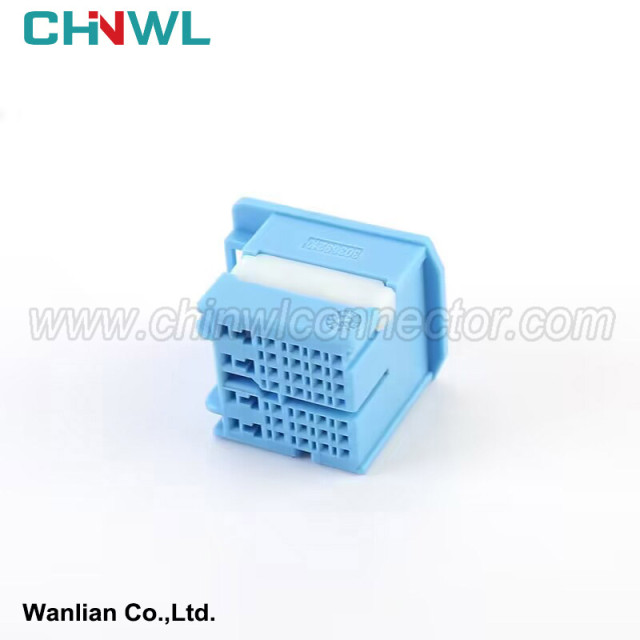

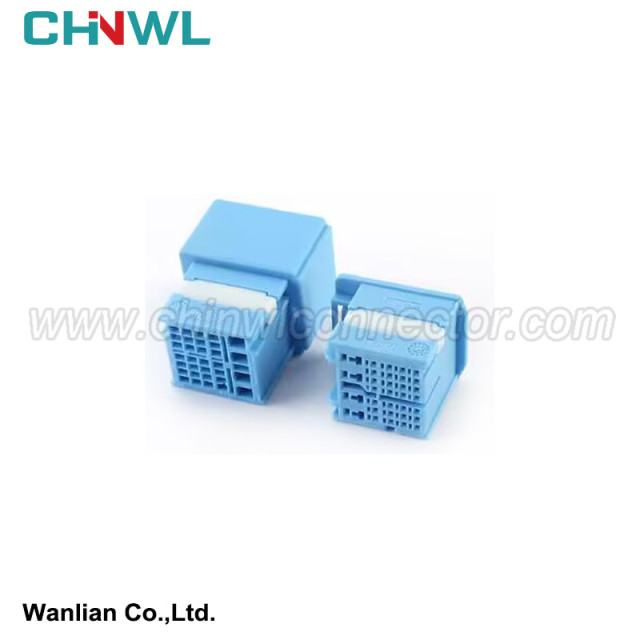

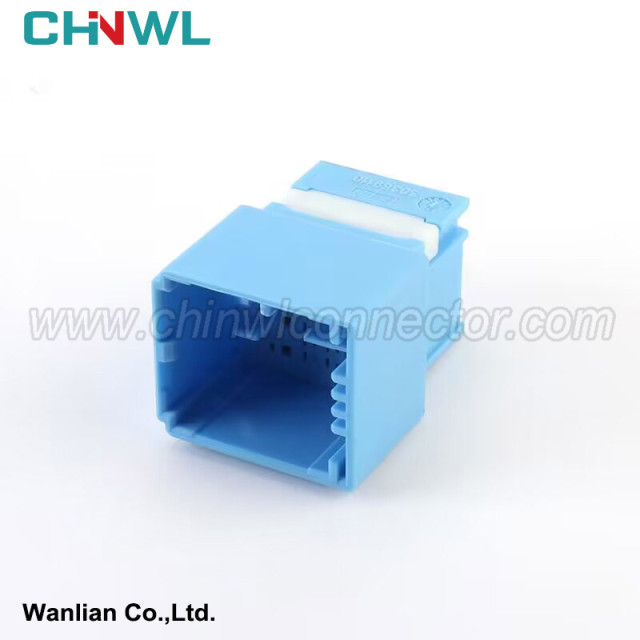

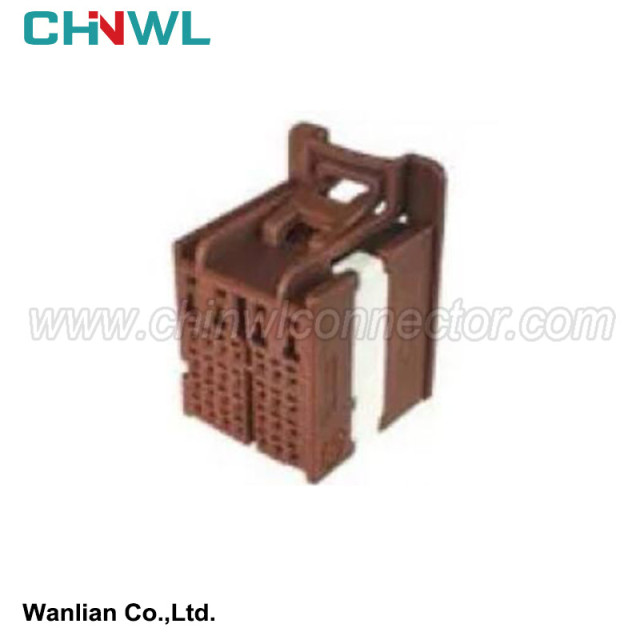

32 Pin 2005020322 1600280012 1600280013 1600280014 Automotive Connector Plastic Case Sheath Connector Plug Socket

4. What are the types of wiring terminals?

There are many types of wire terminals

Commonly include card -type terminals, stroke -wiring terminals, threaded terminals, cold -pressure terminals, plug -in terminals, pressure -connected terminals, etc.

5. What is the effect of the wiring terminal?

Wiring terminals are components connecting or distributed circuits between electrical components, which can firmly connect the wires on the leader or socket of the electronic device to ensure the transmission quality of the signal and power supply.

6. What are the types of connectors?

Plug -in plug -in can be divided into two types: plug and socket according to the structure type. According to the shape and shape, it can be divided into round plug -in, rectangular plug -in plug -in, plate -type plug -in, tube -type plug -in. According to the transmission signal type, the connection can also be divided into various types such as power interface, signal interface, and data interface.

7. What areas are common in connectors?

Connects are widely used in industrial control, automotive electronics, communication electronics, power industries, lighting equipment and other fields.

(1) Wiring terminal

The terminals are mainly produced for the connection of the wires. In fact, the wiring terminal is a metal piece wrapped in an insulating plastic. Both ends of the metal sheet are used to insert a hole in the wire. Screws that are used for tight or loose. Sometimes two lines need to be connected, and sometimes they need to disconnect them. At this time, it can be connected with a terminal, which can be disconnected at any time without welding or entangled together, which is convenient and fast. There are many types of wiring terminals. Commonly used are inserted wiring terminals, PCB -type wiring terminals, wiring terminals, screw fixed wiring terminals, grid board wiring terminals, etc.

The characteristics of wiring terminals: diverse pins, flexible wiring methods, and suitable for high -density wiring requirements; maximum current of the wiring terminal is as high as 520 A; suitable for SMT production process; can be used for reflux welding, maximum temperature resistance of 300 ° C; can also use different ones to use different ones. Accessories expansion function.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
