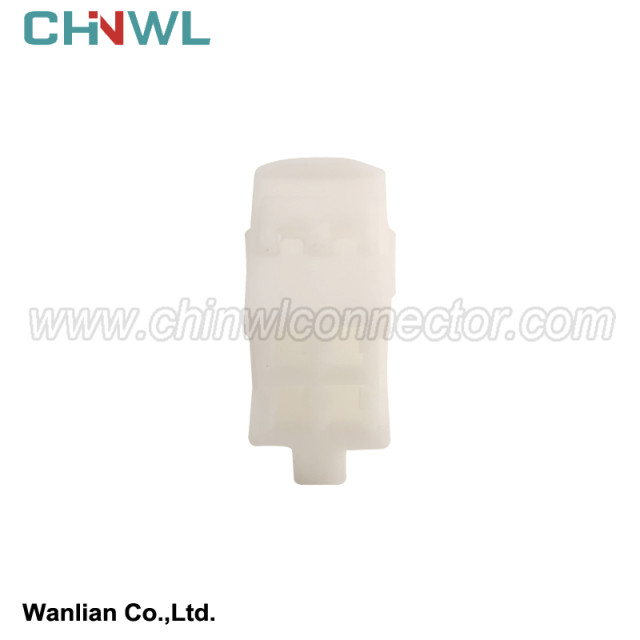

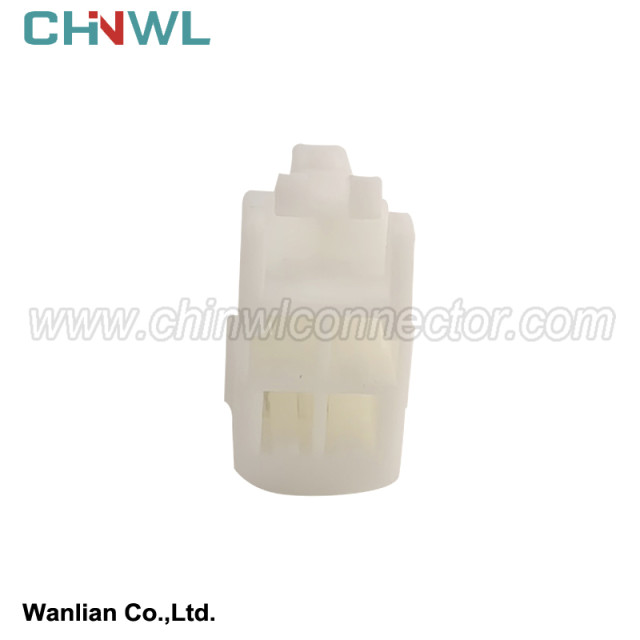

4 pin 6249-1252 6240-0538 Auto Wiring Harness Plug Cable Electric Plug Connector 2.2 Series

Indicates: 100 battery cells are connected in series and divided into 9 modules.
Example: 3P91S
It means: 3 monomers are connected in parallel to form a module, and then 91 modules are composed of several modules connected in series to form a power battery assembly.
Figure 2-8 Internal layout of an electric vehicle battery
For example: the battery pack of the Tesla Roadster pure electric vehicle consists of 6831 18650-type lithium-ion batteries, of which 69 are connected in parallel to form a group, and then 9 groups are connected in series to form a layer, and finally 11 layers are stacked in series, as shown in Figure 2 -9 shown.
1) Battery cell: the smallest unit (3.2V) that constitutes a power battery module.
2) Battery module: a combination of a group of battery cells connected in parallel.
3) Module: an assembly composed of multiple battery modules or battery cells connected in series.
4) Power battery assembly: Connect each module in series to form a power battery assembly.
The power battery is usually composed of 90 to 100 battery modules in series, and the voltage is as high as DC380V (some cars reach 600V). The safety measures for external power supply must be reliable.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
