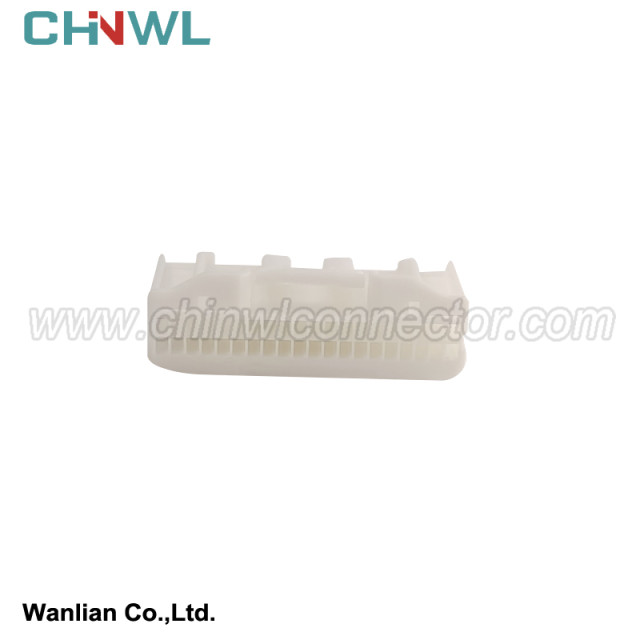

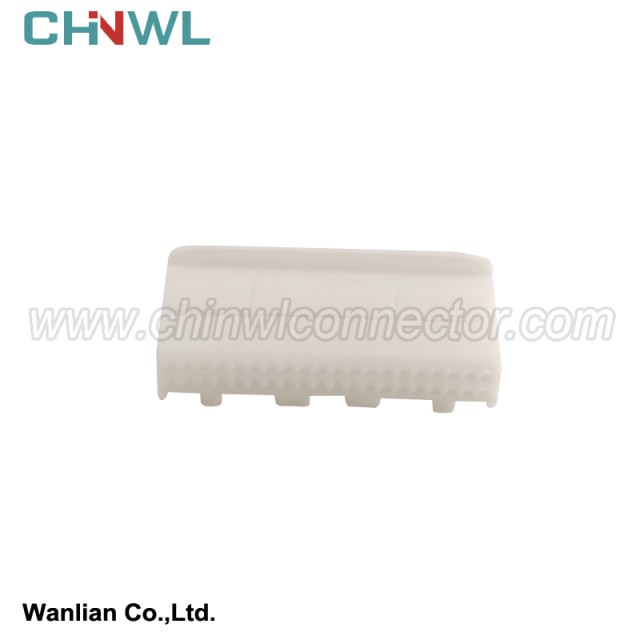

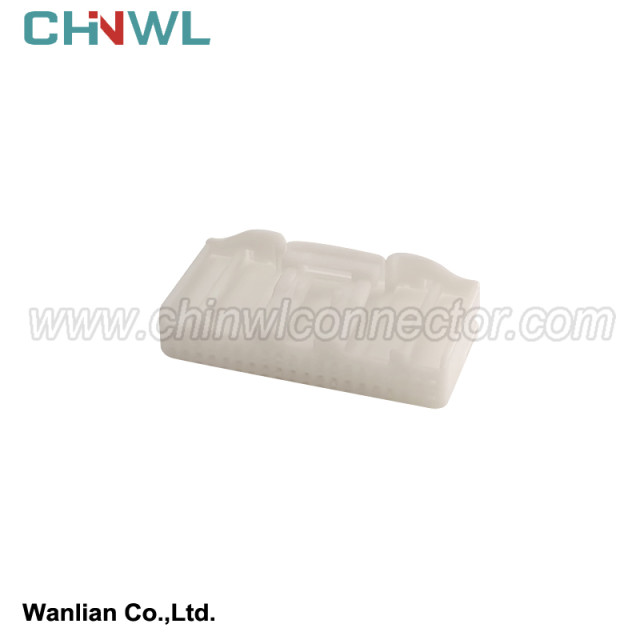

Wanlian #: WL401S2-0.7-21
Mfr. #: 1318389-1 1674312-1 90980-12169 90980-12557
Mating #: WL401S2-0.7-11
Accessories: Terminal Seal
|
Wanlian part number: |
|
WL401S2-0.7-21 |
|
Original number: |
|
1318389-1 1674312-1 90980-12169 90980-12557 |
|
Gender: |
|
Female |
|
Specification: |
|
Housing: PBT+G; PA66+GF; PA66; PBT; Nylon |
|
Type: |
|
Connector |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
(8) Socket installation method
In order to meet the needs of OEM designers for different layout methods of connectors, the installation methods of electrical connector sockets are subdivided into the following four types:
1) The voltage selection needs to match: the rated voltage of the whole vehicle after load calculation should be less than or equal to the rated voltage of the connector. If the working voltage of the whole vehicle exceeds the rated voltage of the connector and runs for a long time, the electrical connector has the risk of creepage ablation.
(2) The current selection needs to match: the rated current of the whole vehicle after load calculation should be less than or equal to the rated current of the connector. If the working current of the whole vehicle exceeds the rated current of the connector and runs for a long time, the electrical connector has the risk of overload ablation.
(3) Cable selection needs to match: The vehicle cable selection and matching are divided into cable current-carrying matching and cable and connector sealing matching. Regarding cable current-carrying, each OEM has a special electrical engineer to carry out matching design, and no explanation is given here. .
Seal matching: The connector and the cable seal rely on the elastic compression of the rubber seal to provide the contact pressure between the two, so as to achieve reliable protection performance, such as IP67; according to the calculation, the realization of a specific contact pressure depends on the specific compression of the seal. According to this Introduced, if reliable protection is required, the sealing protection of the connector has specific size requirements for the cable at the beginning of the design;
With the same current-carrying cross-section, cables can have different outer diameters, such as shielded cables and unshielded cables, national standard cables and LV216 standard cables, and the specific matching cables are clearly stated in the connector selection specifications, so the connection When selecting the type of connector, special attention should be paid to the specification requirements of the adapted cable to prevent the seal failure of the connector.
(4) The whole vehicle needs flexible wiring: For the wiring of the whole vehicle, all OEMs now have requirements for bending radius and slack;
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
