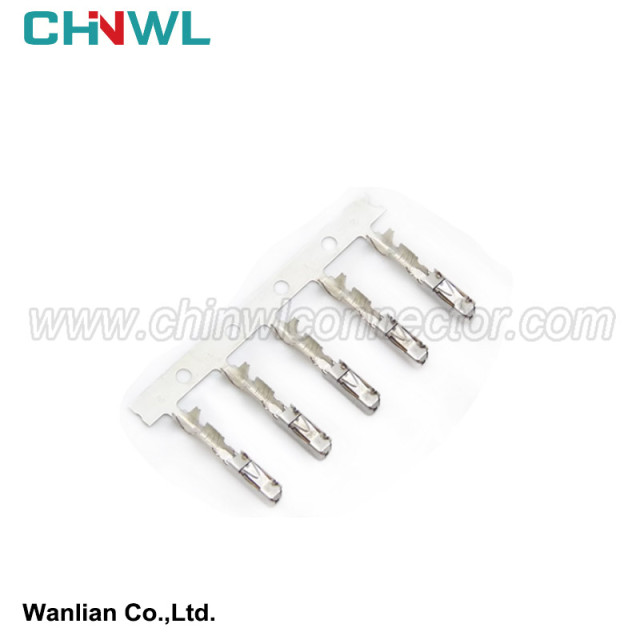

5-0928999-5 5-928999-5 Connector Connects To The Plug-in Terminal

② Starting wire. The starting cable is a copper or aluminum multi -frivolous wire cable with a large cross -section area and a large cross -section area. The starting cable is a dedicated connection cable that is connected to the battery positive electrode and the starting motor power terminal "30". Its cross -section area is 25mm2, 35mm2, 50mm2, 70mm2 and other specifications, allowing currents to be as high as 500A or even 1000A. In order to ensure the normal operation of the starting motivation and generate sufficient driving moment, the voltage generated by the current on the starting line must not be reduced by 0.1V per 100A.

③ Take the iron wire. The iron wire is a dedicated connection cable that is connected between the battery's negative electrode and the body metal or engine body, so it is also called the battery carrier wire. The flat -shaped soft copper cable or the insulating bag and the large cross section of the copper wire with the iron wire and the larger cross -section area of the iron wire is a copper soft cable with a large cross -section area.

2. Common car wire color codes

Use letters on the circuit diagram to represent the color of the wire skin and its system. The circuit diagram of Chinese cars and Japanese cars is commonly used in a single letter. Individuals use double letters, and the latter is a lowercase letter. 2 to 3 letters in the circuit diagram of American cars indicate a color. If there are stripes on the wire, write more letters. The circuit diagram of German cars and French cars is mostly abbreviated by national letters. This should be noted.

(2) Car line beam

In order to make the entire car line regular, convenient installation, and the insulation of protecting the wires, except for high -voltage lines, batteries and cables of the storage machine antenna, the entire vehicle line on the car generally uses cotton yarn or polychloride of different specifications in the same area in the same area. The ethylene belt is bandaged into a bundle, which is called a wiring beam, as shown in Figure 9-1.

The car wire beam is the network main body of the automotive circuit, and there is no car circuit without wire beams. At present, whether it is a high -end luxury car or an ordinary car, the form of the beam assembly is basically the same. Generally, it consists of wires, terminals (or holes), plug plugs or sockets, and sheers.

Generally, the cable beam is divided into engine wiring, instrument panel beam, body wire beam, etc. Figure 9-2 shows the layout of the entire vehicle line.

With the increase of automotive functions, the general application of electronic control technology, more and more electrical components, more and more wires, and the thicker and heavier wires. Therefore, advanced cars introduce the CAN bus configuration and adopt a multi -road transmission system. Compared with traditional wire beams, multi -road transmission devices have greatly reduced the number of wires and connectors, making the wiring easier.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
