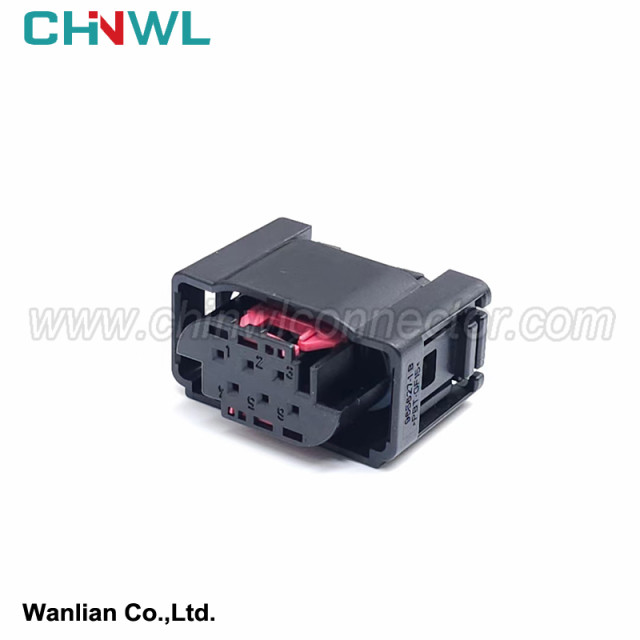

6 Pin / 6 pin 1-967360-1 7M0 973 119 Auto Connector Air Suspension Ride Height Level Sensor Plug 0.7 Series

6 pin 1-967360-1 7M0 973 119 Auto Connector Air Suspension Ride Height Level Sensor Plug 0.7 Series

Wanlian #: WL061TY1-0.7-21

Mfr. #: 1-967360-1 7M0 973 119

Mating #: WL061TY1-0.7-11

Accessories: Terminal Seal

Online Inquiry

    Wanlian part number:

     WL061TY1-0.7-21

    Original number:

     1-967360-1 7M0 973 119

    Gender:

     Female

    Specification:

    Housing: PBT+G; PA66+GF; PA66; PBT; Nylon

    Type:

    Connector

    TUV, TS16949, ISO14001, ISO 9001, RoHS conform:

    Yes

    MOQ:

    No minimum order quantity

    Supply sample:

    Yes

    Customized drawing with Decal, Frosted, Print are available as request

    Yes

    Payment method:

    We accept Paypal, TT, Alipay, West Union etc.

    Transportation method:

    Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc.

    Production Capacity:

    1000000pieces/Month

1-967360-1 7M0 973 119




1. The self-diagnosis principle that the monitoring point is located at the positive pole of the monitored component

In the automotive electronic control system, the fault self-diagnosis monitoring points of various sensors are generally located at the positive pole of the sensor.

2. Self-diagnosis of grounding and short circuit to negative pole

When the monitoring point is located at the positive pole of the monitored component, the self-diagnosis circuit of the sensor grounding or short-circuiting to the negative pole is shown in Figure 9-4. When the sensor and the control system are normal, the self-diagnosis circuit measures the signal voltage of the sensor input to the central processing unit CPU from the self-diagnosis monitoring point as 0.3-4.7V, indicating that the sensor is working normally, and the self-diagnosis result is no fault record.

If the signal line between the sensor and the electronic control unit ECU, the connector plug or the sensor part itself is "grounded", as shown in Figure 9-4a, the monitoring value input to the CPU at the self-diagnosis monitoring point will always be 0V.

If the sensor signal line is short-circuited with the negative wire, that is, "short-circuited to the negative pole", as shown in Figure 9-4b, the monitoring value input to the CPU at the self-diagnosis monitoring point will always be 0V.

To sum up, when the monitoring point is located at the positive pole of the monitored component, when the signal line of the control component, the connector plug or the component itself is "grounded" or "shorted to the negative pole", the monitoring value of the CPU is 0V. . Because it is difficult for the CPU to distinguish its fault type, the fault recorded by the CPU is: "ground or short circuit to ground".






Simple instructions:

We have product Catalogue,please contact us on skype,WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.

The Keywords of this product:Automotive Connectors Terminals Plugs
