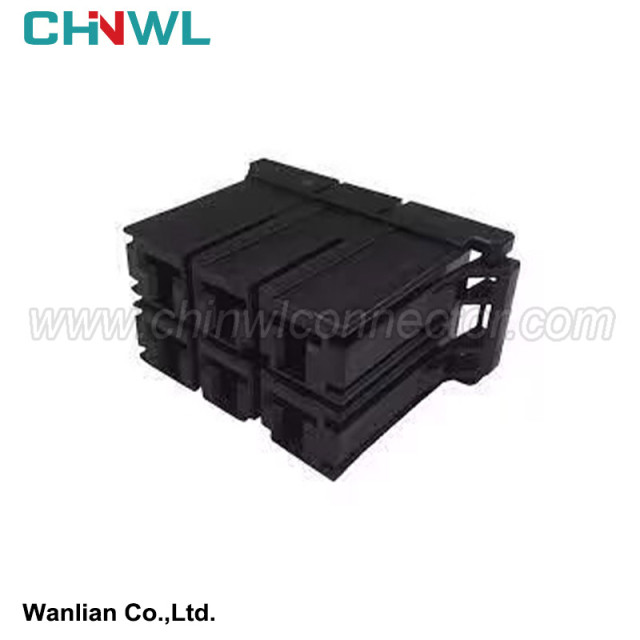

6 pin 2-917807-3 Receptacle Mating Retention Cable Power Wire To Board Connectors

Visual inspection is one of the most important verification tools in wire machining and pressure connection technology.

There is no expensive nor time -consuming simple but effective visual inspection.

A simple real world example: assume that the wires are peeled and pressing through the peeling machine-pressure connecting machine during a working cycle. If the machine operator checks the peeling residual collection container multiple times per hour, he can quickly determine whether the separate wire beam is cut off during the peeling process. (This is also applicable to all other divesticks).

This is a fast and almost no cost test, which can ensure process reliability and quality, and can detect changes in the machine settings or conductive quality. Another method is to create a relatively expensive micro -photo and calculate the single -line stocks on the micro -photo.

Of course, 100% visual inspections on the pressure connection may not be the most feasible choice, because people's eyes will soon be fatigue, so the defect may be ignored. When setting the machine, and during the production inspection and the purchase inspection period, the visual inspection may be the most important verification tool in our knowing technology.

One condition is of course: you must know what to find. And: you must do this!

Continuous training and employee education have not only improved quality awareness, but also in addition to knowledge, but also convey the feeling of problems and sources of errors -not only in terms of pressing technology. Or briefly: If the operator knows what he is doing and why he does something, he will identify the error!

Which tests can be detected?

In order to ensure the production quality of the connection connection connection using the opening pressure connector, the corresponding test method is used for different possible errors. Table 1 shows different defects and test methods that can be used to detect them.

The pressure connection equipment and molds are connected to the wires and terminals through the pressure. High -frequency welding is to weld the wires and terminals together using high -frequency welding machines. Resistance welding is to connect the wires and terminals with a special resistance welding device. The advantages are simple, easy to use, low manufacturing costs, high operating efficiency, and suitable for mass production. The disadvantages are unable to satisfy the connecter requires the high current, and the high resistance requirements are high after connecting the wire and the terminal connection. The common pressure connection method of large square high -pressure terminals is shown in Figure 1, which is a hexagonal closed terminal.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
