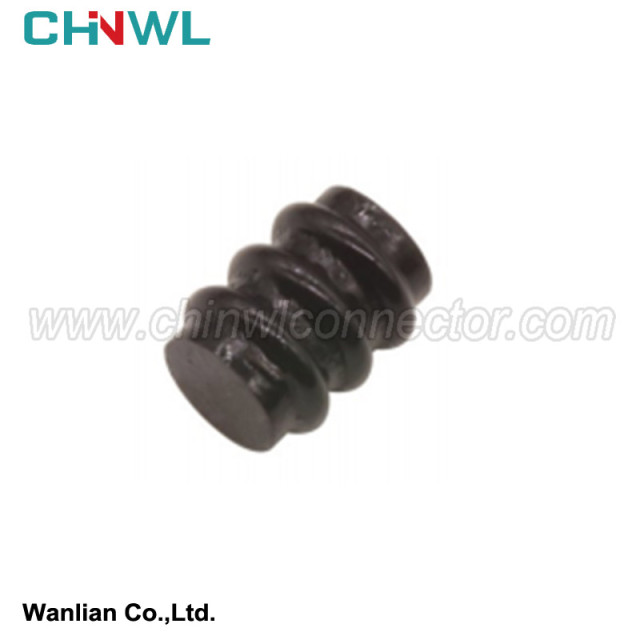

7160-9465 MG683695 Drop In For Sumitomo And KET Cavity Plug Black Silicone

It can be seen from Figure 2 that the line design of the wire must be far from the thermal source. In the heavy truck of tightly arranged space, you can design the heat insulation board or add heat protection cover to the wire beam to avoid heat sources (see Figure 3). In addition to avoiding heat sources during design, it is reasonable and compact to bundle it in the place where the heat source is in the assembly.

The cable beam can be tied at the same time as the brake pipe road, and the cable beam with a large current (greater than 1A) does not directly contact the fuel tank or oil pipe, and it should be avoided by tied with the oil pipe. When designing, the second row of the frame is bundled in the second row of the frame, and the bottom pipe is tied at the bottom of the oil pipe. The pores of the oil pipe and the perforated of the wire must be separated (see Figure 4).

The reserved function joint should be designed with sealing protection. The branch line is fixed on the trunk line, and it must not be piled up and scattered (see Figure 5).

The fixation of the wire beam on the bracket should prevent the wear of the edge of the bracket and pay attention to the wear when passing through the hole. The cable should be tied strictly in the bracket and must not interfere with the edges. Too close to prevent the wire beam from squeezing and deformation, affecting the performance of the line beam (see Figure 6).

The power cord must be fixed with a pipe clip, and the power cord connector must have an insulating protective cover. In addition, the power cord shall not be in contact with metal oil pipes, air -conditioning refrigeration, and fuel pipes and fuel tanks.

The wiring beam is suspended. If there are other attachments (such as the trachea), each 200 ~ 250 mm is fixed with the attachment, and the frame is fixed with a bracket every 400 mm; See Figure 7).

The car wire beam is the network main body of the automobile circuit. Without the wire beam, there is no car circuit. The car becomes an empty shell without blood. For the elements that need to be controlled during the assembly and inspection process, the pipeline is controlled. , Lack of fixing, interference in pipelines, crossing, leakage, appearance, etc. The current technical files have the installation diagrams, principles, and photo charts that only express the assembly relationship between components. The clear marker beam direction and the characteristics requirements should be paid attention to during the assembly process, and the design drawings need to be further completed.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
