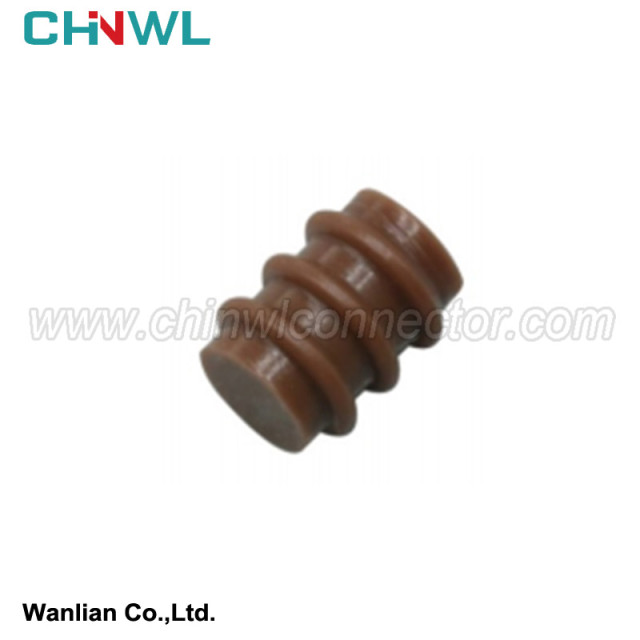

Wanlian #: WLD-001
Mfr. #: 7161-9787
Size: L: 6.3mm OD: 4.7
Material：Silicon
|
Wanlian part number: |
|
WLD-001 |
|
Original number: |
|
7161-9787 |
|
Color: |
|
brown |
|
Operating Temperature range: |
|
-40℃~125℃ |
|
Application: |
|
Waterproof sealing for Automotive connector and Wiring Harness |
|
Specification: |
|
The silicone oil,High tear resistance,OEM |
|
Type: |
|
Single Wire Seal (SWS) |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
|
Advantage: |
|
High qualified mold design, smooth appearance, no flash, for automatic crimping machine |
|
Purpose: |
|
Dustproof，Waterproof |
3.2 Wiring Beam Architecture
The line arrangement is a positive design process. In the early days of design, it is necessary to rigorously implement parallel projects. During the development of the entire model, the reservation of the line arrangement space must be fully considered. This can improve the reliability of line beam layout, avoid problems, improve the assembly process, reduce the number of brackets, reduce the cost of material, and improve the reliability of vehicles and systems.
3.2.1 Basic requirements for line arrangement
a) According to the requirements of GB 7258-2012: All electrical wires should be bundled into bundles, neatly arranged, fixed card tightly, firmly linked, and insulating sleeves at the joints. Flame retardant wear -resistant insulation sleeve or rubber sleeve.
b) Each line should be reasonably arranged according to the requirements of product patterns and technical documents. The connection is correct, fixed and reliable, and there must be no loose, falling, and interference in lines.
c) When installing the wire beam, it should be far away from the heat source, including the engine exhaust pipe, air compressor, the high temperature part of the engine cylinder, etc. The distance must not be less than 120 mm. It is shown that the wiring beam must not be close to the sports components such as the fan, the transmission shaft, and the distance must not be less than 80 mm.
3.2.2 Line bundles Installation of the operating procedure
Due to the flexible structure of the wire beam assembly, it is impossible to completely determine its direction and fixed nodes like rigid parts. Therefore, the reasonable layout design of the wiring beam requires 3 stages.
a) Design phase: According to the fixed position of electrical components, determine the direction of the wiring beam, and complete the wire beam assembly design; b) Trial improvement stage: Through the thread beam assembly in the sample car trial installation, adjust the length of the wire beam.
c) The thread beam is moving to the physical smooth stage: Determine the fixed bracket structure and the fixed position, the fixed position of the wire beam, the hole position that needs to be increased or moved on the frame, etc. Other parts.
