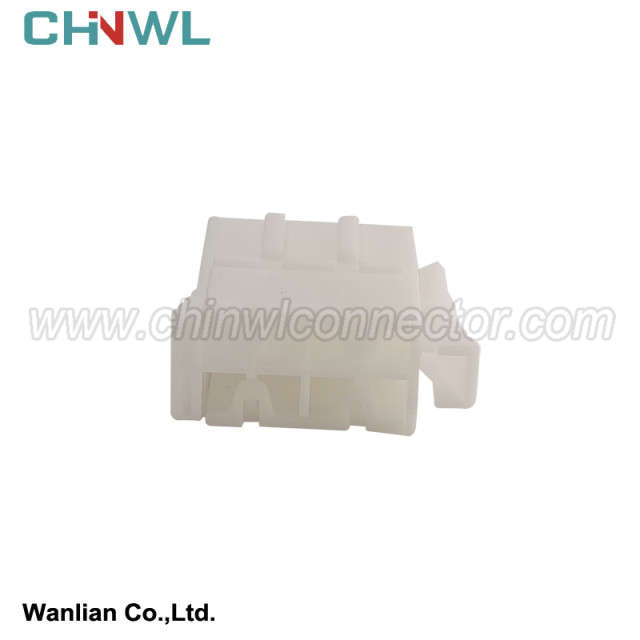

8 pin 927365-1 Rectangular Housings Receptacle Connector Junior Power Timer Auto Connector 2.8 Series

Color error proof
In the application of error proofing in design, color error proofing is the most intuitive and obvious, which is different from color error proofing in component error proofing. In the design process, consider the limitations of some parts and connector selection in the design process, and it is impossible to realize error proofing and shape error proofing. At this time, color error proofing can also be considered. It can be that the color of the connector is inconsistent, or it can be It is to do color marking in the process of production design to meet the error-proof requirements.
Dimension error proofing
Dimensional error prevention, as the name implies, means that where error prevention may occur, the connector branches with different functions are guided by the outlet direction or fasteners such as buckles to achieve the purpose of error prevention. The ideal size error prevention is the uniqueness of the mating between the connector and the electrical appliance end. Although the A connector and the B connector are consistent, but through the size error prevention, the A connector can only be mated with the A electrical appliance end, and the B connector can only be mated. It is mated with the B electrical appliance end.
Example: The position of the deep clutch and the shallow clutch harness 3D are very close to each other, and the connector uses the same plug-in, that is, the deep and shallow clutch switch 3D . At this time, size error prevention needs to be considered. Figure 4b shows the deep and shallow clutch switches 2D, the long branch is the deep clutch switch, the short branch is the shallow clutch switch, and the deep clutch switch is 130 mm. It has been verified that the branch length of the deep clutch switch is 130 mm. After envelope analysis, the deep clutch switch can only be assembled on the deep clutch switch. Similarly, the shallow clutch switch is 70 mm long and can only be assembled on the shallow clutch switch. In this way, the uniqueness of matching is realized through size error proofing to ensure correct operation.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
