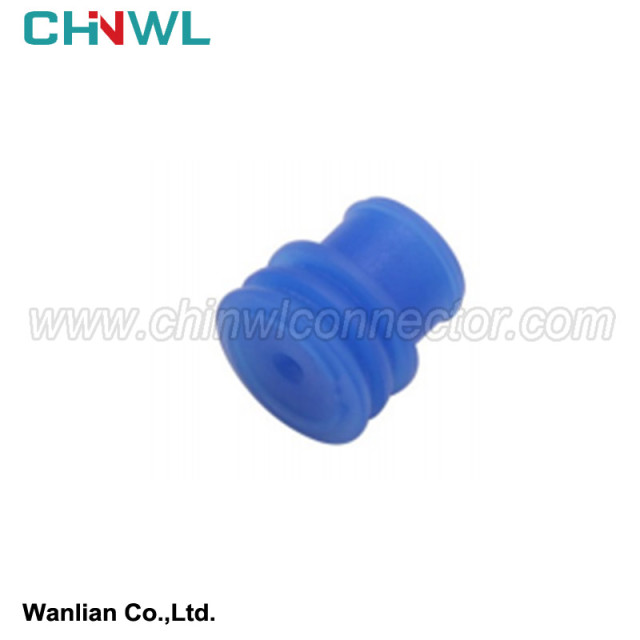

963243-1 Automotive Seals & Cavity Plugs Single Wire Seal (SWS) Wire Sealing Waterproof Bolt Connector

The car wire beam is the assembly of the automotive power and signal transmission distribution system. It is the network main body of the automotive circuit. It is a carrier connecting the connection parts and components connected to each electrical equipment in the automotive circuit. If the car is compared to the human body, the car engine is the heart, and the ECU is the brain, then the car wire beam is blood vessels and nerves. It can be seen that the car wire beam is the importance of the normal stable work of the vehicle circuit.

In order to ensure that the vehicle electrical equipment can maintain a reliable connection under normal use conditions, the electrical equipment of the entire vehicle uses different specifications, colors, and temperature -resistant wires, and sheers, and terminals. The need for maintenance is to connect the wires required by the vehicle, and then bind them together through the reasonable process through the positioning parts, protective pipes and other components, and form a wire beam.

The wire beam is composed of wires, protectives, terminals, melting wires, relays, and other parts that can play a role in insulation, protection, fixing, and sealing.

Unlike modern automation production technology, automotive wire beam products are special products with dense management, dense labor, and intensive components. They can achieve limited processes of automation technology. Requirements.

With the continuous improvement of automotive electronic functions, consumers have continued to increase the requirements of the safety, comfort, and control of the vehicle. In order to satisfy different consumer groups' preferences for automotive appliances, the vehicle manufacturers generally design models configured different electrical functions for different consumer classes. In this way, the types of beam products that are equipped with them also increase. Taking a series of domestic market sales and word -of -mouth, this model can be equipped with 5 gasoline engines with GW4G15F, GW4B15A, GW4D15D, GW4C20B, GW4N20, and the matching engine and transmission lines matching are as many as 13 types. In addition, the door line beam, instrument panel and console line, frame wiring, front cabin beam, cockpit wiring, cockpit wiring, cockpit wiring and consumer can choose more than 80 types. It can be seen that the types of wire beam products are closely related to the configuration of the vehicle electrical appliances. The richer the electrical function configuration, the more the type of matching wire beam products. In addition, the multi -breed and small batch of commercial vehicle beam products are also another major feature.

At present, the mainstream car manufacturers in the world are mainly divided into 3 car lines: the United States (mainly in North America) represented by the United States, the European series represented by Germany (mainly in Europe), and the representatives of Japan and South Korea as the representatives of Japan and South Korea. Japan and South Korea (mainly in Japan and South Korea). In addition to the above three mainstream cars, the automobile manufacturing industry in the United Kingdom, France, Italy and other countries also has considerable brand awareness worldwide. The entire vehicle of each department has formed a system, so it is naturally a systematic system, and the wire beam products are no exception. The car system is different, and the components used in the beam products are also different. The types of components that make up the lines of wire beam products are about 20 categories, such as sheets, terminals, wires, positioning parts, raids, fuse boxes, relays, rubber parts, pipes, tapes, and foam bars, which are different according to different use sites. The materials used in use are also different.

Generally speaking, the automation coverage of the vehicle beam products in the process of batch processing does not exceed 50%, which is destined to be densely labor -intensive product characteristics.

The processing process of cable beam products is mainly feeding, pressure connection, welding, insulation, packaging and assembly. The automated coverage rate of the packaging process and assembly process does not exceed 10%. Today, this will undoubtedly become the wire beam industry. Development bottleneck.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
