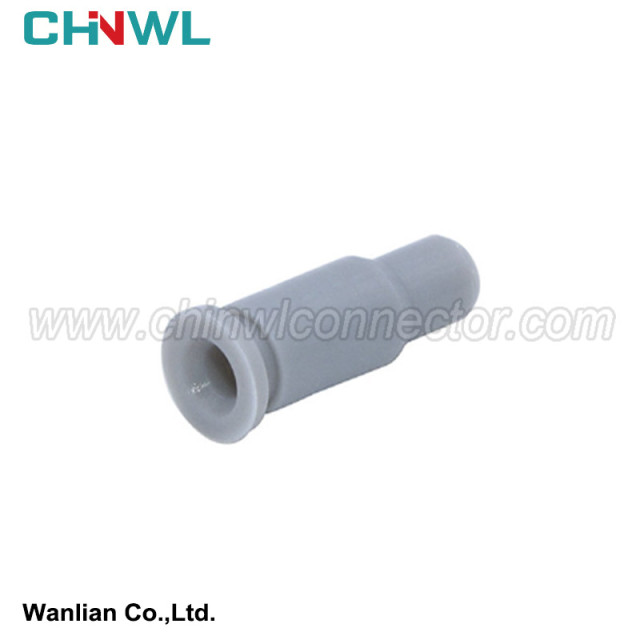

Wanlian part number: |
|
WLX758 |
|
Original number: |
|
F418400 |
|
Application: |
|
Our Rubber Seals are applicable to various types automatic crimping machine. Such as Komax, Junquan, JAM, SHINMAYWA,HAIPURUI, THB,JMK,,Seiko machines. |
|
Specification: |
|
The silicone oil,High tear resistance,OEM |
|
Type: |
|
Seal |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
|
Advantage: |
|
High qualified mold design, smooth appearance, no flash, for automatic crimping machine |
|
Purpose: |
|
Dustproof，Waterproof |
1 Overview of low voltage line beam
Low -voltage beam refers to the wires between each electrical equipment connected inside the car. These wires generally show a stagnation state and exist in a beam -shaped form, so it is called a wiring beam. The low -voltage line is composed of wires, terminals, plugs, ripples, heat shrinkable tubes, and silicone rubber. The cause of 60%of the faulty of special vehicle electrical systems is the quality of the cable beam, mainly mainly problems such as functional failure, appearance failure, and protective protection.
1) Functional failure: The problem of terminal pressure connection and terminal insertion quality directly causes the vehicle's electrical control system to work.
2) The appearance failure: The wire beam is protected by the opening of the tube of the tube and the insulating tape is wrapped and fixed. The wire beam is not beautiful, which directly affects the appearance of the vehicle.
3) Protective failure: The tail end of the branch of the branch is not protected, and the problem of insertion into the water will cause the terminal connection to abnormal.
The quality of the line beam is directly related to whether the special vehicle electrical system can run normally, and it is imperative to improve the level of wire beam production and the reliability of wire beam.
2 Low -voltage beam production process process and requirements
1) Circuit cutting and wire marking (wire number). Among them, the wire cut is based on the batch nature of the cutting marker of the wire (according to the number of models of the production plan). The wire marking (wire number) is based on the wire detail table according to the technical requirements.
Process requirements: The length of the wire cutting is suitable for the terminal length of the terminal. After cutting, the insulation peel is not damaged or fractured in the inside of the inside of the inside.
2) Separation. After the wires of the same line number are cut, each wire is divided into a set of wire beams.
Process requirements: After straining the wires of the same line number, they are packed with a split -line workplane board. The wires that form the beam are placed on the phenomenon of the line frame, and the logo is smooth, the wiring beam is smooth, no twisting, messy and other phenomena.
