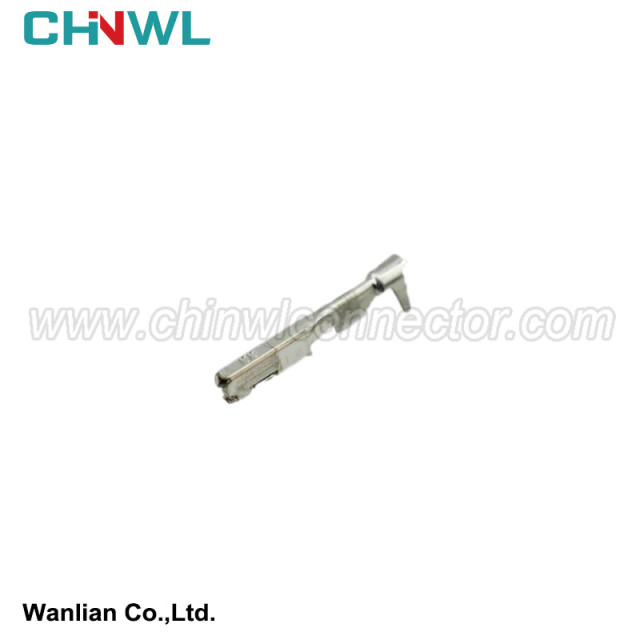

CHINWL #: DJ627-1.2A
Mfr. #: PPI0000489 7116-4415-02 0.3mm² 7116-4416-02 0.5mm²
Wanlian part number: |
DJ627-1.2A |
Original number: |
PPI0000489 7116-4415-02 0.3mm² 7116-4416-02 0.5mm² |
Gender: |
Female |
Specification: |
Copper Alloy, Brass, Phosphor Bronze, Nickel. |
Type: |
Terminal |
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
Yes |
MOQ: |
No minimum order quantity |
Supply sample: |
Yes |
Customized drawing with Decal, Frosted, Print are available as request |
Yes |
Payment method: |
We accept Paypal, TT, Alipay, West Union etc. |
Transportation method: |
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
Production Capacity: |
1000000pieces/Month |
1 Auto line beam assembly production application advantage
The new type of electric vehicle low -voltage power control wire beam assembly changes the line beam direction, the appearance is beautiful, easy to identify, and convenient maintenance. Or the problem of function failure has good security and stability.
2 car lines fitting process and production process
2.1 Car Line Benefit Matching Process
A truck door beam assembly, which includes wiring beam 11, which connects the first waterproof body interface connector connecting through the wire 11. Vistern Mirror connector 7, waterproof electric glass lifting motor connector 8, first waterproof electric glass lifting switch 9, second waterproof electric glass lifting switch 10; On the door sheet metal, the line beam 11 passes through the truck door sheet metal perforated place with a waterproof pore overplay 5. Remove the electrostatic wire beam with iron round sheet 4. In this way, in the rain and misty weather, you can control the interruption of the waterproof electric rearview mirror connector to prevent the external mirror fog, and it can effectively control the opening of the door lock of the cab. The problem of mutual wear of vibration solves the problem of interference of the glass lifter link, and prevents the wear phenomenon of wire beams and vehicle sheet metal parts due to oxidation or function failure due to water oxidation or function failure. Compared with the existing truck door beam, this assembly technology solution is more humane design, powerful, and has greatly improved the safety and durability of vehicles.
2.2 Automotive line production process
(1) The tail sleeve of the elastic stroke of the line bundle fixed buckle is equipped with a shield. Automotive beam manufacturers set a spring between the bottom of the card slot fixed with the wiring bundle, and the spring resistance can be exposed to the elasticity of the tail of the elastic stuck head.
(2) When the elastic card header card is entered into the card hole, the elastic effect of the spring can not only improve the buffer performance of the vibration, but also ensure the stability of the card header of the elastic card head. Because the inner side of the buckle on the thread fixed buckle and the bottom of the card slot are set with a sponge pad, after the buckle buckle is covered, the wire beam is closed in the card slot Stablize.
