CHINWL #:

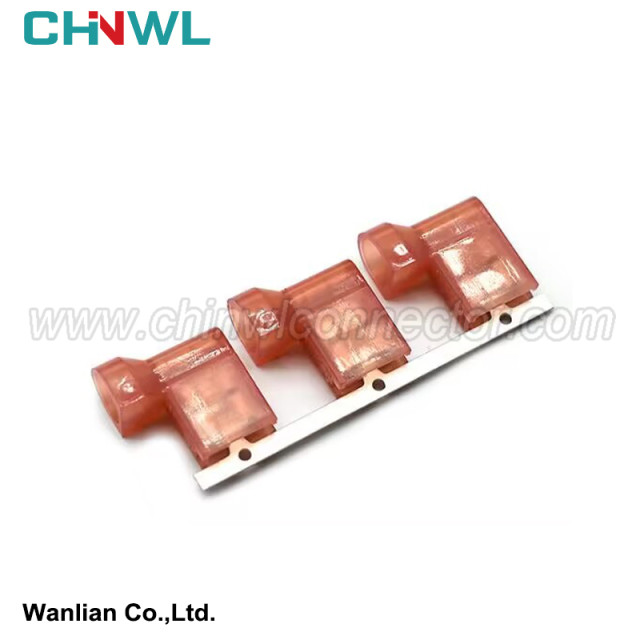

Mfr. #: 2-520129-2
|
Wanlian part number: |
|
|
|
Original number: |
|
2-520129-2 |
|
Gender: |
|
Female |
|
Specification: |
|
Copper Alloy, Brass, Phosphor Bronze, Nickel. |
|
Type: |
|
Terminal |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
2 Ensure the maintainability of the wiring harness, and the wiring harness has good maintainability
When laying out the electrical wiring harness of the entire vehicle, attention should be paid to its repairability/maintainability. Once an electrical problem occurs, if other irrelevant parts need to be removed during disassembly, it will cause unnecessary waste and increase maintenance costs and time. Good maintainability is reflected in the fact that when an electrical system fault occurs, the fault can be eliminated in the shortest possible time, and the maintenance operation can avoid damage to other components during troubleshooting.
For wiring harness repairability, focus on areas that often require maintenance:
For the convenience of replacing fuses and relays, pay special attention to the parts that need to be disassembled when replacing fuses and relays, and whether the fuses and relays in each position can be pulled out normally.
The location of the diagnostic interface is convenient for operation and maintenance. External devices can be plugged and unplugged normally, and the diagnostic interface itself can be disassembled and assembled.
Maintenance of electrical components for wearing parts, such as car lights at various locations
Maintenance of frequently used electrical appliances, such as vehicle switches, multimedia, instrument clusters, etc.
3 Ensure the reliability of the wiring harness layout and the reliability of the layout design.
After ensuring the assembly and repairability of the wiring harness, focus should be placed on the reliability of the wiring harness layout design. In the three-dimensional layout of the wire harness, the reliability of the wire harness is mainly considered from the following methods:
Note: The following specific requirements are just the accumulation of personal work experience and are only suggestions. In the actual work process, specific situations should be analyzed in detail.
