Wanlian part number: |
|
|
|
Original number: |
|

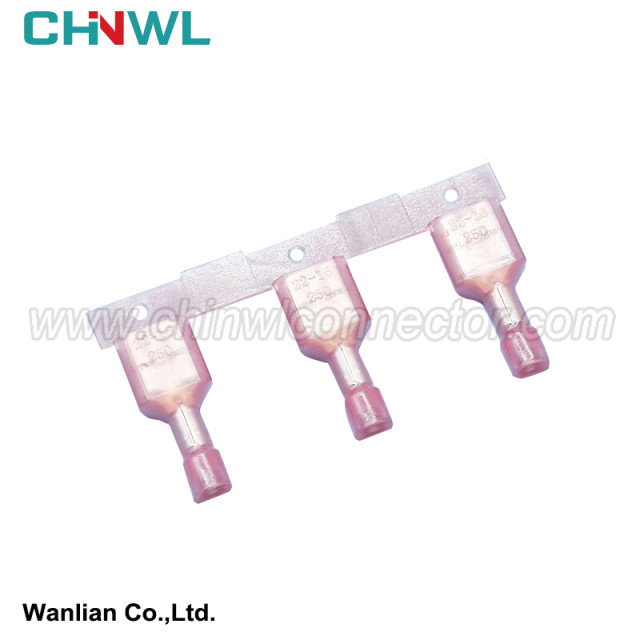

2-520405-2 |
|
Gender: |
|
Female |
|
Specification: |
|
Copper Alloy, Brass, Phosphor Bronze, Nickel. |
|
Type: |
|
Terminal |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
4) Installation and fixation of wire harness buckle
The wire harness buckle is the main fixing method of the wire harness assembly, which determines the layout of the wire harness on the vehicle. In order to facilitate the installation and fixing of the buckle, the requirements for the layout of the buckle mainly include:
The fixing hole of the buckle of the wire harness should be opened in the plane area of the structural part as much as possible. When fixing on a curved surface, it is best to make a small plane on the structural part.
Under the premise of meeting the reliability requirements of wiring harness layout, the number of buckles should be as small as possible, which can reduce the assembly burden of workers and improve assembly efficiency.
The thickness of the sheet metal corresponding to the tie and the buckle on the plug-in must match each other, and the size of the hole must match each other, and the specifications of the corresponding welding studs must match each other.
In the installation direction of the fixed buckle, the buckle installation hole must be visible or touchable, and there must be enough space to facilitate the installation and removal of the buckle.
5) Selection of wire harness fastener
In the design process of the wiring harness fixed structure and related functional boxes, try to use commonly used standard parts, and try to keep the types of standard parts as small as possible, and reduce the use of special tools in assembly and maintenance through early design.
6) Impact on the installation of peripheral parts
During the design process, the characteristics of different areas are considered in a targeted manner, and the designed wiring harness direction must not affect the assembly of other vehicle parts;
7) Electromagnetic compatibility and anti-electromagnetic interference
Regarding electromagnetic compatibility and anti-electromagnetic interference, it is not only necessary to consider the selection of wires, such as using twisted pairs, shielded wires, etc., but also to consider the wiring direction of the wire harness.
Some models with batteries and trunks at the rear need to transmit current to the electrical box in the engine compartment and the starter, so there will be a large-diameter wire running through the entire vehicle to carry a strong current at all times. At this time, how should you still follow the instructions? In traditional wiring, if this high-current wire is placed in the same wire harness without distinguishing it from other signal wires, it will inevitably cause interference to the signal wires. Therefore, this high-current wire is usually arranged separately, and enough space is left between it and the ordinary wire harness. For a long distance (above 100mm), the sheet metal is required to make a groove for laying wires, and it can play a certain electromagnetic shielding role.
