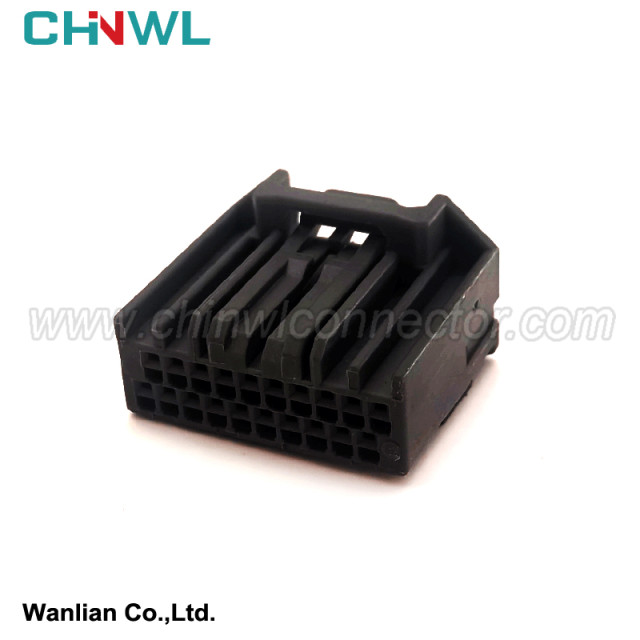

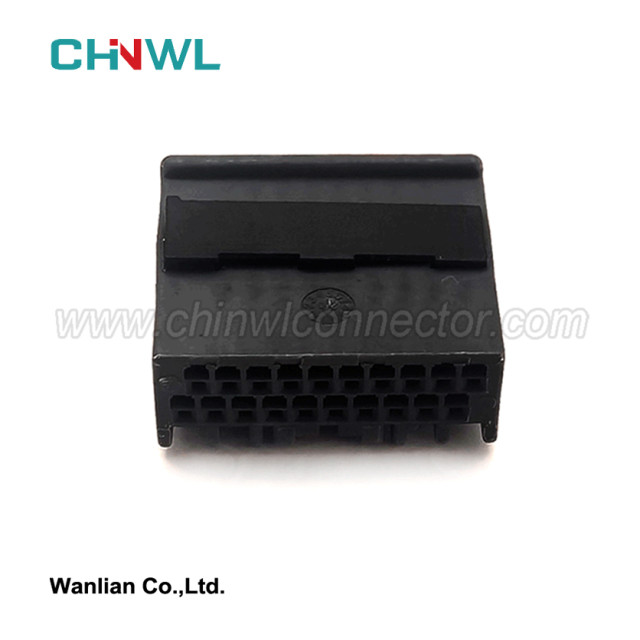

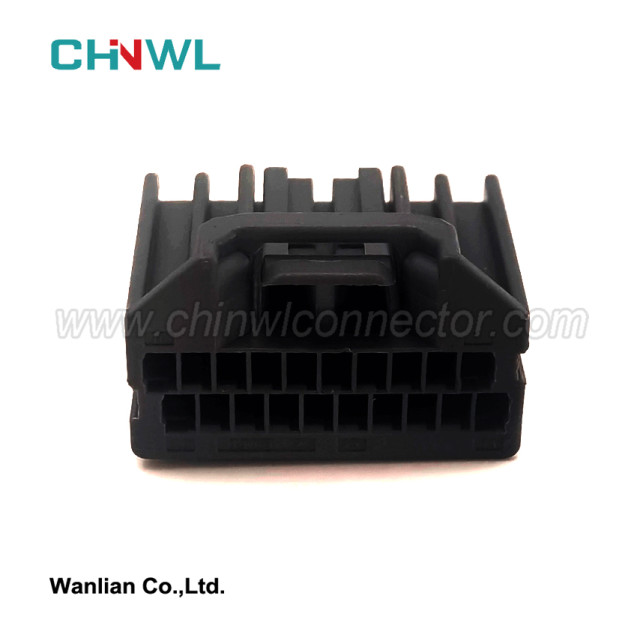

20 Pin / 20 pin MX34020SF1 Auto CD Audio Connector Car Power Speaker Antenna Cable Socket For Honda 0.7 Series

20 pin MX34020SF1 Auto CD Audio Connector Car Power Speaker Antenna Cable Socket For Honda 0.7 Series

Wanlian #: WL205S1-0.7-21

Mfr. #: MX34020SF1

Online Inquiry

    Wanlian part number:

    WL205S1-0.7-21

    Original number:

     MX34020SF1

    Gender:

     Female

    Specification:

    Housing: PBT+G; PA66+GF; PA66; PBT; Nylon

    Type:

    Connector

    TUV, TS16949, ISO14001, ISO 9001, RoHS conform:

    Yes

    MOQ:

    No minimum order quantity

    Supply sample:

    Yes

    Customized drawing with Decal, Frosted, Print are available as request

    Yes

    Payment method:

    We accept Paypal, TT, Alipay, West Union etc.

    Transportation method:

    Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc.

    Production Capacity:

    1000000pieces/Month

MX34020SF1






Crimping Precautions

·Precautions for crimping:

1. Whether there are any problems in the installation and debugging of the equipment will directly affect the quality of terminal crimping. (For example: Is the mold loose, are the terminals in place, are there any impurities in the mold, etc.

2. The placement of employee gestures. Incorrect gestures will cause various defective products

  The following introduces various crimping gestures and examples of poor crimping.

bad cases

NO.1 Excessive skin crimping

Reason: Incorrect crimping gesture or improper adjustment of the baffle causes the crimping part of the core wire to press into the outer skin, resulting in excessive and poor crimping of the outer skin. Consequences: Directly affecting the crimping of the conductor, causing poor current flow or direct circuit break.

NO.2 Insufficient crimping of the outer skin

Reason: The crimping gesture is incorrect or the crimping speed is too fast, resulting in poor crimping.

Consequences: Due to insufficient crimping of the conductor and insulation, the terminal has insufficient pulling force and is prone to breakage during product use, directly affecting product performance.

NO.3 Exposed copper wire

Reason: During the crimping process, the semi-finished copper wires were scattered, or the crimping method was improper.

Consequences: 1. The exposed copper wire can easily cause discharge, and it can also easily come into contact with other terminals and cause a short circuit.

2. The crimping part of the core wire has less copper wire, which indirectly affects the tensile force of the terminal, resulting in insufficient tensile force.

NO.4 The outer skin of the feet is broken

Reason: During mold debugging, the terminals were not in place, or the crimping blade was damaged.

Consequences: Directly affects pulling force.







Simple instructions:

We have product Catalogue,please contact us on skype,WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.

The Keywords of this product:Automotive Connectors Terminals Plugs
