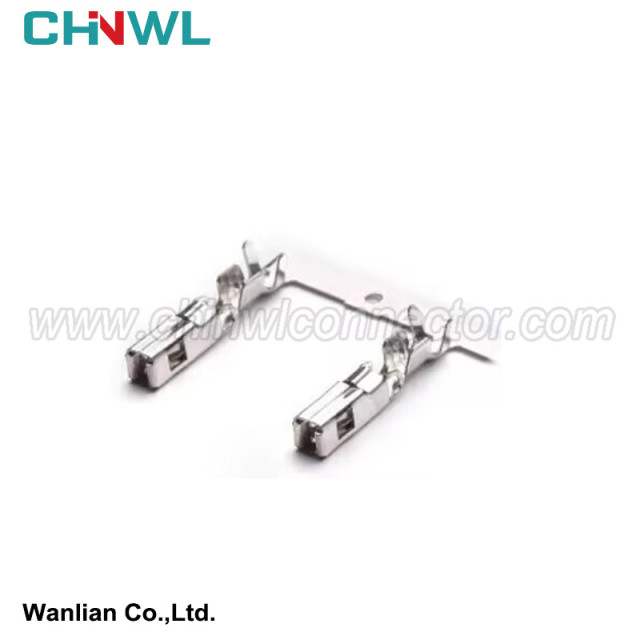

CHINWL #: DJ627-B2.8X0.8A DJ627-B2.8X0.8B
Mfr. #: 211CC3S1160 0.5-0.75mm² 211CC3S2160 1.0-1.5mm²
|
Wanlian part number: |
|
DJ627-B2.8X0.8A DJ627-B2.8X0.8B |
|
Original number: |
|
211CC3S1160 0.5-0.75mm² 211CC3S2160 1.0-1.5mm² |
|
Gender: |
|
Male |
|
Specification: |
|
Copper Alloy, Brass, Phosphor Bronze, Nickel. |
|
Type: |
|
Terminal |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
1. Wire beam bandage design
Wire beams can play the role of abrasion, flame retardant, corrosion, prevent interference, reduce noise, and beautify the appearance. Generally, the following bandage design scheme is formulated according to the working environment and space size:
① The engine wire beam has a bad working environment, so it is designed with high flame -retardant, waterproof, and high mechanical strength.
② The working environment of the front cabin is also relatively poor. Most branches can also be designed with a ripple tube with good flame retardant. Some branches are designed with PVC pipes.
③ The work space of the instrument line is small and the environment is relatively good. You can choose a tape or stuck bandaging design.
④ The door line and the top tent line work space is small, and the tape can be used for full design. Some branches can be bandaged with industrial plastics. The thinning tent wire can be directly designed with sponge tape.
⑤ Because the chassis line has many contacts with the metal metal of the car, the ripple tube bandage can be used to prevent the wiring beam wear design.
2. Wire beam fixed design
The central electrical box is generally fixed with steel bars, bolts, etc., or the fixed structure designed by the electrical box itself is directly installed on the body.
Each line beam is generally fixed in the body hole with plastic straps, buckle hooks, etc. Most of the body holes are designed as round or ellipse holes. Generally, the diameter of 5mm, 6mm, and 7mm holes is generally selected according to the hook.
The condoms between each line beam are generally fixed collectively with protective cover brackets and installed on the body. The body line of the larger model is long and thick. Generally, it is fixed on the body with a sheet to reduce vibration and noise.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
