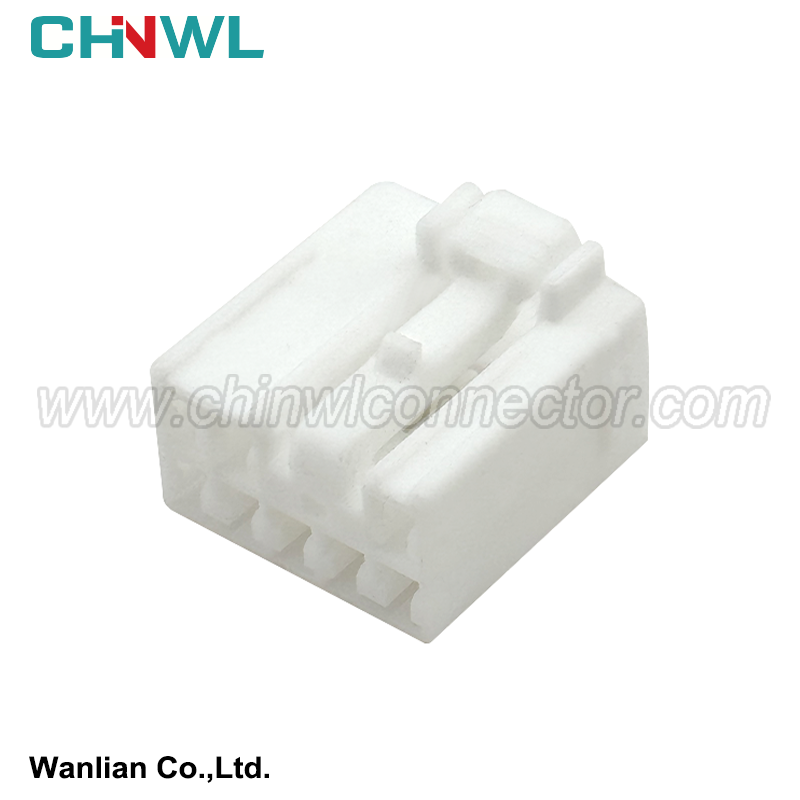

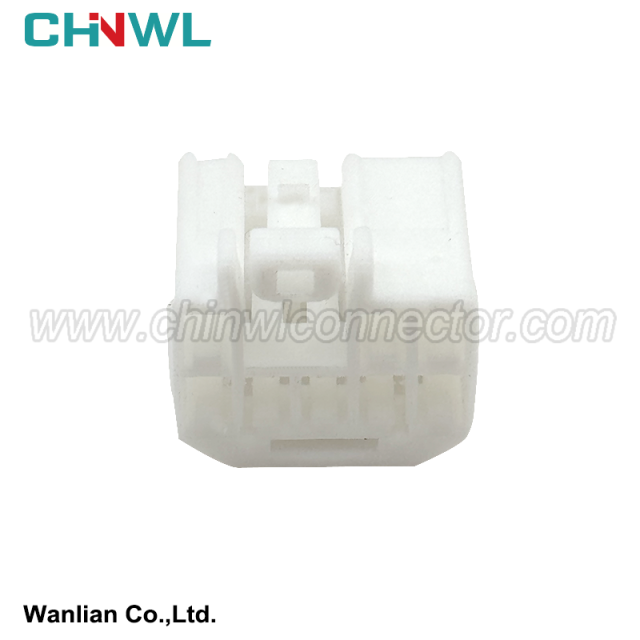

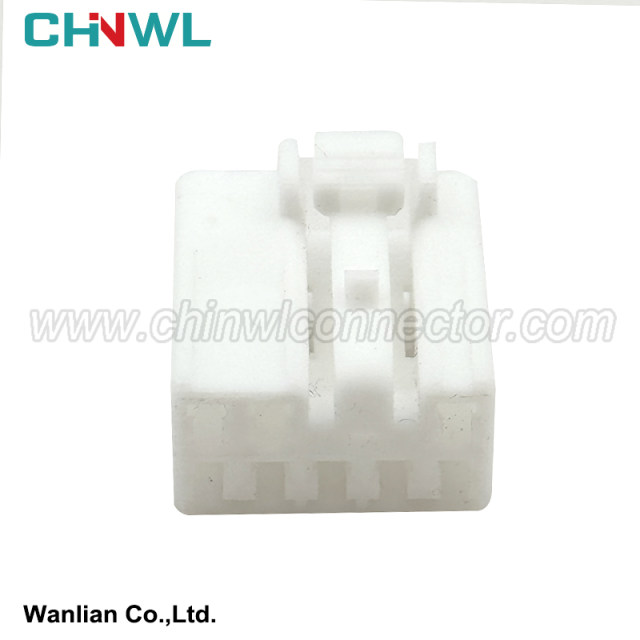

Wanlian #: WL085Y2-2.2-21
Mfr. #: MG651050
Mating #: WL085Y2-2.2-11
Accessories: Terminal Seal
|
Wanlian part number: |
|
WL085Y2-2.2-21 |
|
Original number: |
|
MG651050 |
|
Gender: |
|
Female |
|
Specification: |
|
Housing: PBT+G; PA66+GF; PA66; PBT; Nylon |
|
Type: |
|
Connector |
|
TUV, TS16949, ISO14001, ISO 9001, RoHS conform: |
|
Yes |
|
MOQ: |
|
No minimum order quantity |
|
Supply sample: |
|
Yes |
|
Customized drawing with Decal, Frosted, Print are available as request |
|
Yes |
|
Payment method: |
|
We accept Paypal, TT, Alipay, West Union etc. |
|
Transportation method: |
|
Air Transport: UPS, DHL, FEDEX etc; Sea Transport; Railway Transport; Freight Forwarding etc. |
|
Production Capacity: |
|
1000000pieces/Month |
Under the trend of smart connectors, the design of contact pressure must be very precise.
Disadvantages of too much holding power:
(1) Increase the insertion force of the terminal, which may easily cause deformation of the terminal;
(2) Increasing the internal stress of the housing will easily cause deformation of the housing.
Disadvantages of too little holding force:
(1) The contact pressure is not enough, resulting in large contact resistance and poor contact;
(2) The terminals are easy to loosen.
The figure below shows the change analysis of contact pressure and contact resistance
Insulation Failure Analysis and Reliability Design
Insulation resistance refers to the resistance value that occurs when a voltage is applied to the insulating part of the connector to cause leakage current on the surface or inside of the insulating part. That is, insulation resistance (MΩ) = voltage (V)/leakage current (μA) applied to the insulator. Through the insulation resistance test, it is determined whether the insulation performance of the connector meets the requirements of the circuit design or whether its insulation resistance meets the relevant technical conditions when it is subjected to environmental stress such as high temperature and humidity.
Insulation resistance is the limiting factor in designing high impedance circuits. Low insulation resistance means high leakage current, which will destroy the normal operation of the circuit. For example, forming a feedback loop, the heat and DC electrolysis generated by excessive leakage current will damage the insulation or deteriorate the electrical performance of the connector.
Simple instructions：
We have product Catalogue，please contact us on skype，WhatsApp or Email.
If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
