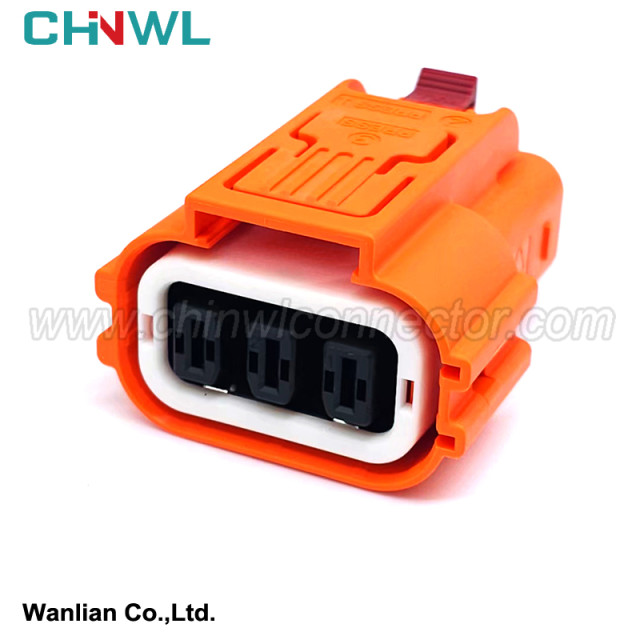

Wanlian #: HVSL633063A103I
Mfr. #: HVSL633063A103I
Mechanical characteristics
Life life: ≥500 times
Line range: 2.5-6.0mm2 shielding cable
Insert power: <100N
Hvil: Built -in
Electrical characteristics
Rated voltage: 800V DC
Rating current: maximum 40A @ 70 ℃
Insulation impedance:> 200mq
Electromagnetic shielding: 360 ° shield
Insulation and resistance: 3000 VAC
Material performance
Terminal: copper/copper alloy, tin plating
Shell: PA66/GF
Protection level: IP67, IP6K9K (connection status)
Work temperature: -40 ℃ -125c
1. The brittleness of PBT and PA66 connectors, especially the brittleness of connectors with buckle and hinge structures.
2. The pull-out force of PA66 connectors is greatly affected by moisture. Z63 injection molded automotive connectors have strong toughness and good pull-out force within half a day after injection molding. No water treatment is required. At the same time, the water absorption rate of Z63 is only that of PA66. One-sixth of that, the pulling force will not be affected by the humidity of the use environment.
3. When the PBT and PA66 connectors are below minus 30 degrees Celsius, they are easy to be brittle. Z63 injection molded connectors have good low temperature resistance and are not easy to be brittle.
4. The toughened PBT and PA66 solve the problem of brittle fracture at room temperature, but at the same time, when used at 60 to 120 degrees, the pulling force will drop sharply. Z63 injection molded connectors can maintain good pullout force and toughness under normal temperature, low temperature and high temperature environments.
5. In the application of multi-PIN automotive connectors, PBT and PA66 injection molded connectors will have warping problems, mainly because the fluidity of the material is not good enough, requiring relatively large pressure and speed for injection molding, and the internal stress is large. , so the warping will be more obvious. Z63 material has excellent processing fluidity, which can help you solve the warpage problem
3. When the nozzle material of PBT is added to the new material to inject the connector, it is easy to become brittle, because PBT is easy to hydrolyze at high temperature. The Z63 material has excellent high temperature hydrolysis resistance, and when the amount of nozzle material added is as high as 35%, it has very little effect on the mechanical properties of the connector.
The sheath (plastic shell), usually made of plastic, inserts the wire of the crimped terminal into it to ensure the reliability of the connection. High voltage connectors will also have metal housings.
Commonly used materials mainly include PA66, PBT, Wintone Z63 tough engineering plastics, etc. In order to achieve the purpose of reinforcement or flame retardancy, flame retardant or reinforcing materials, such as glass fiber, carbon fiber, etc., are often added.
