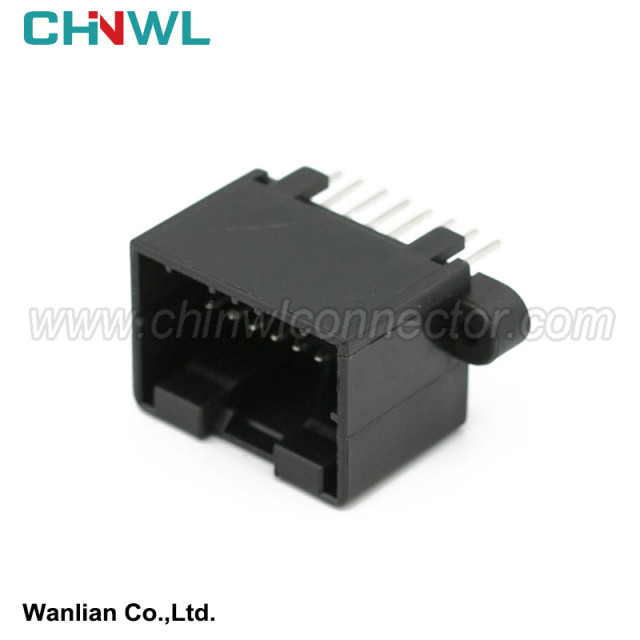

16 pin 174053-2 Car PCB Connector Auto Wire Adapter Automobile Electrical Socket

The structure of the stator
The function of the stator is to generate alternating current. The stator consists of a stator core and a stator winding. The stator core is formed by laminating annular silicon steel sheets with grooves in the inner circle.
The stator winding is a three-phase winding, which is placed symmetrically in the stator core slot according to certain rules. The requirement for winding three-phase windings is to make the three-phase windings generate three-phase symmetrical electromotive force with the same frequency, equal amplitude and phase difference of 120° electrical angle. For this reason, when winding a three-phase winding, the placement position of the winding should be reasonably determined. When a star connection is used, the expanded view of the stator winding is shown .
There are two connection methods for three-phase windings: star connection (referred to as connection) and delta connection (referred to as △ connection). When the connection is adopted, the three ends X, Y, and Z of the three-phase winding are connected together, which is called the neutral point, and the three starting ends U, V, and W are used as the output ends of the alternator. When the △ connection is used, the beginning of one phase winding is connected to the end of the other phase winding, and there are 3 contacts in total, and these contacts are the output ends of the alternator.1. The structure of pure electric vehicles
A pure electric vehicle refers to a vehicle that is powered by a vehicle-mounted power supply, drives the wheels with a motor, and meets the requirements of road traffic and safety regulations. The composition of pure electric vehicles mainly includes power supply (power battery), drive motor system, vehicle controller and charging system, air conditioning system, cooling system, braking system, steering system and data acquisition terminal, etc., while other parts are basically the same as traditional Internal combustion engine cars are the same. The structure of a pure electric vehicle is shown.

Simple instructions：

We have product Catalogue，please contact us on skype，WhatsApp or Email.

If you can't find a product on our website or catalog, We deal with over 10,000 items, our catalog doesn’t cover all products. And we are developing 100+ molds yearly, which means around 10 new products are created in our factory. So don’t go away, just send us your photo or part no, we’ll check for you.
